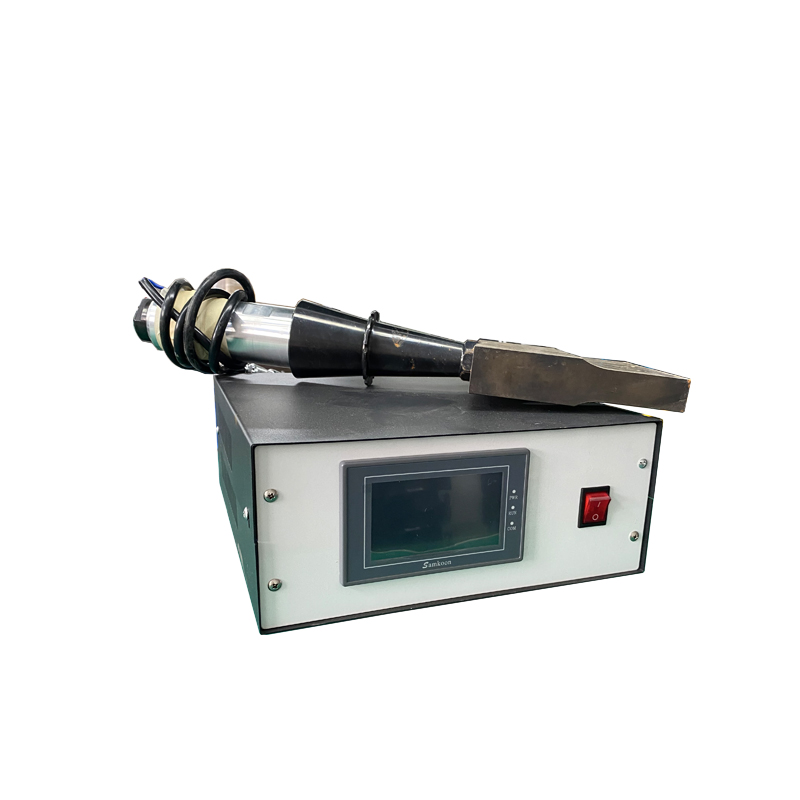

1000W 15KHZ High Power Ultrasonic Plastic Welding Transducer And Generator For Plastic Welder

The ultrasonic welding transducer produced by the company is a mechanical product elaborately designed and processed with piezoelectric ceramic elements and imported materials. At the same time, the ultrasonic transducer also has large amplitude, high electroacoustic conversion rate, stable operating voltage, air, underwater operation, low heat generation, high reliability, convenient installation, normal specifications and parameters, stable performance, power circuit control, sensor and generator damage protection High output efficiency, stable switch structure, normal heating temperature, long service life, etc.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
