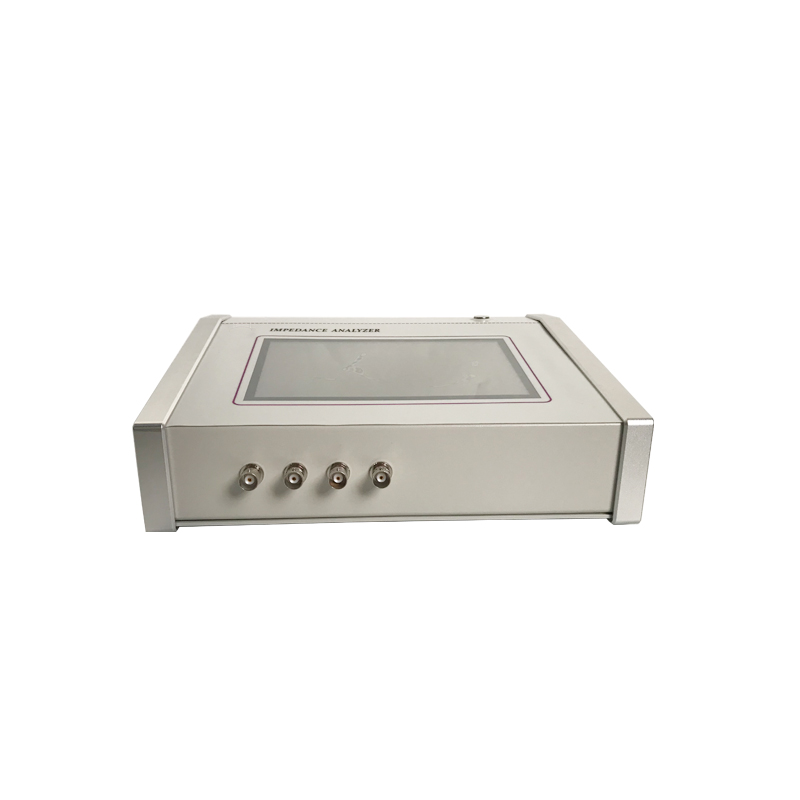

1KHZ-500KHZ Testing Piezo Ceramics Frequency Ultrasonic Impedance Analyzer

1KHZ-500KHZ Testing Piezo Ceramics Frequency Ultrasonic Impedance Analyzer

The impedance analyzer can measure and evaluate to match the circuit

For piezoelectric ceramic chips, you can directly judge the advantages and disadvantages of devices from the admittance circle and logarithmic coordinates. If there are delaminations or cracks in the ceramic chips, the logarithmic curve will have multiple peaks, and many parasitic small circles will appear on the admittance circle

Whether the design, processing and assembly of the horn are reasonable or defective can be seen directly on the guide circle diagram

For the production and processing of ultrasonic welding machine, the results of admittance circle are used to analyze the state of the welding machine. Through the analysis of parameters and graphics, the existing problems of the welding machine are found

For the production and processing of Ultrasonic Cleaning Machine: the selection of vibrator requires that its vibration performance should be as consistent as possible (bandwidth, quality factor, resonant frequency, dynamic impedance). On the admittance circle diagram, there should be no parasitic circle or no parasitic circle near the resonance point It can analyze and measure the impedance characteristics of transducer manufacturing, incoming material inspection, bonded transducer and cleaning machine The whole machine measurement of the cleaning machine can calibrate the resonant frequency and static capacitance of the machine, so as to match the power supply. It can analyze its new resonant point, impedance and capacitance after water injection, and the characteristics of the vibration mode of the whole machine
