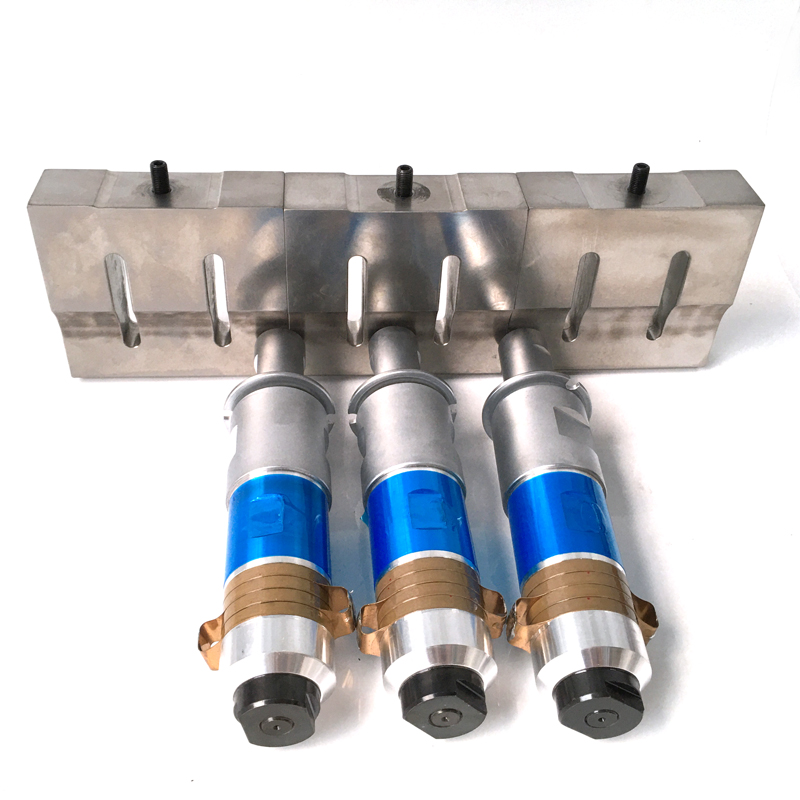

2000W 20KHZ Ultrasonic Welding Transducer With Booster For Non-woven PP PE POM Welding Machine

2000W 20KHZ Ultrasonic Welding Transducer With Booster For Non-woven PP PE POM Welding Machine

Ultrasonic welding transducer is an important component of ultrasonic processing equipment. Its function is to convert input electrical energy into mechanical energy, and then perform high-precision, high-strength, and high-speed welding on the workpiece. With the continuous progress of technology and the continuous development of industrial production, the application of ultrasonic welding transducers is becoming increasingly widespread, and they are widely used in fields such as automobiles, electronics, aerospace, and healthcare.

The ultrasonic welding transducer consists of piezoelectric ceramics, ultrasonic generator, ultrasonic transducer, and ultrasonic tool head. Among them, piezoelectric ceramics can convert input electrical energy into mechanical energy, ultrasonic generators can convert input electrical energy into ultrasonic signals, and ultrasonic transducers can convert ultrasonic signals into mechanical vibration, thereby driving the ultrasonic tool head to vibrate.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
