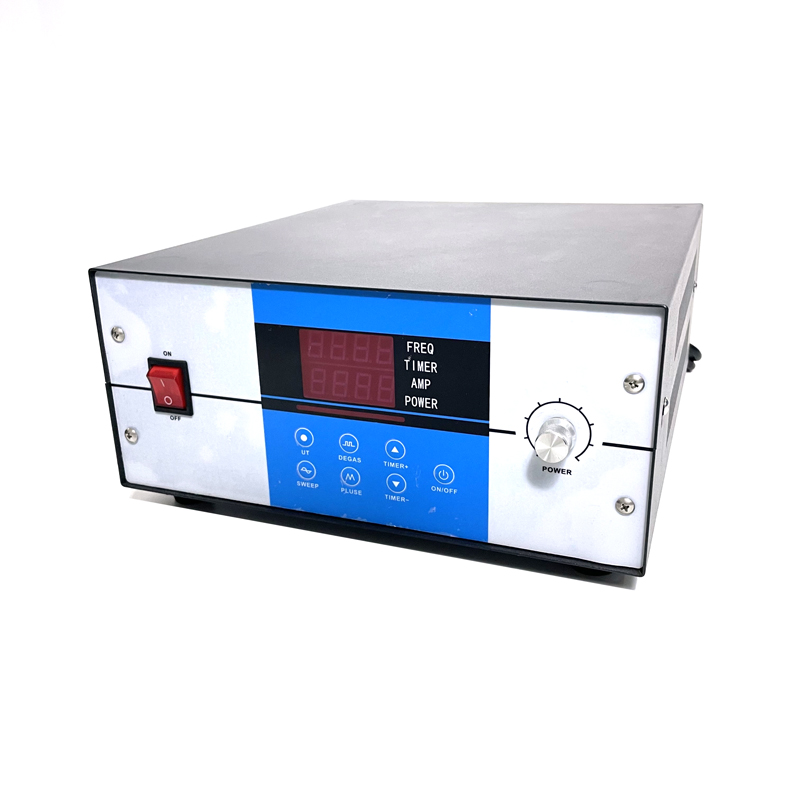

20khz-40khz Industrial Ultrasonic Cleaning Generator For Cleaner System

Overview of Ultrasonic Power Supply: This product adopts advanced micro processing control and digital frequency synthesis technology. Adaptive frequency fuzzy control can meet the sweep width and speed of different Ultrasonic Transducer, so that the ultrasonic energy distribution is more uniform and the ultrason…

Send Inquiry

Chat Now

20khz-40khz Industrial Ultrasonic Cleaning Generator For Cleaner System

Overview of Ultrasonic Power Supply:

This product adopts advanced micro processing control and digital frequency synthesis technology. Adaptive frequency fuzzy control can meet the sweep width and speed of different Ultrasonic Transducer, so that the ultrasonic energy distribution is more uniform and the ultrasonic efficiency can be exerted at any time. The machine adopts anti-corrosion design and can be used in various harsh working environments. The energy conversion efficiency is high, and the temperature of the whole machine is low for a long time. The perfect protection function makes the work more reliable. Digital power regulation and time regulation are more convenient. It can also be equipped with a remote control port, which is convenient for application in the fully automated production line.

II Technical parameters:

Input voltage: 220V AC 50Hz

Output power: 0-3000W optional

Power control: 0-100% 16 level CNC adjustment

Time control: 0-59 minutes and 59 seconds

Ambient temperature: 0 –+65 ℃

Output harmonic parameter: 97% (Min)

Peak current (3000W load): ≤ 40A

Operating frequency: 20K-40KHz

Type	Power（W）	Frequency (KHz)	Siz
PU-DGN300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
