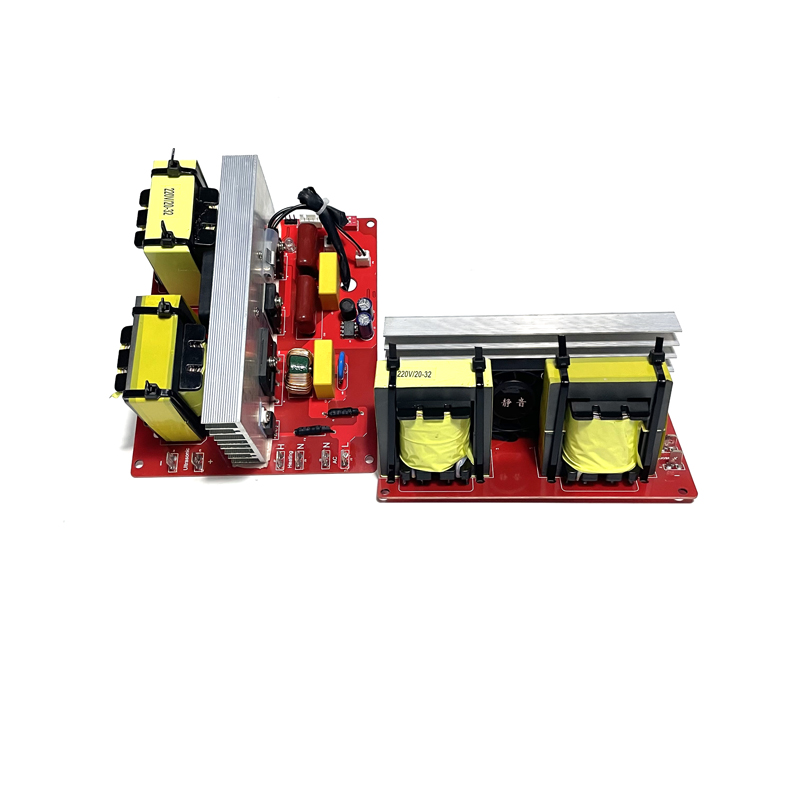

240W Single Frequency Ultrasonic PCB Generator And Vibration Cleaning Transducer For Digital Ultrasonic Cleaner
The circuit is designed with advanced separate excitation integrated circuit, with automatic frequency sweeping, conversion efficiency up to 98%. The power part is made of Mitsubishi module, with stable and strong output. The operating surface is equipped with an ammeter, with visual power adjustment, and with over-c…
The circuit is designed with advanced separate excitation integrated circuit, with automatic frequency sweeping, conversion efficiency up to 98%. The power part is made of Mitsubishi module, with stable and strong output. The operating surface is equipped with an ammeter, with visual power adjustment, and with over-current thermal protection function. No load or short circuit can be automatically protected, without damaging the generator, and can be matched with any transducer.
High power generator set: when the ultrasonic power exceeds 3000W, multiple generators are required to be used in combination, which can be installed in the electric cabinet box, which is beautiful and elegant.
| Type | Power（W） | Frequency (KHz) |
| PU-PCB200W | 200 | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz,165khz,200khz |
| PU-PCB300W | 300 | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz |
| PU-PCB400W | 400 | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-PCB500W | 500 | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-PCB600W | 600 | 20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
标签：Single Frequency Ultrasonic PCB Generator, Ultrasonic Generator, Ultrasonic PCB Generator
