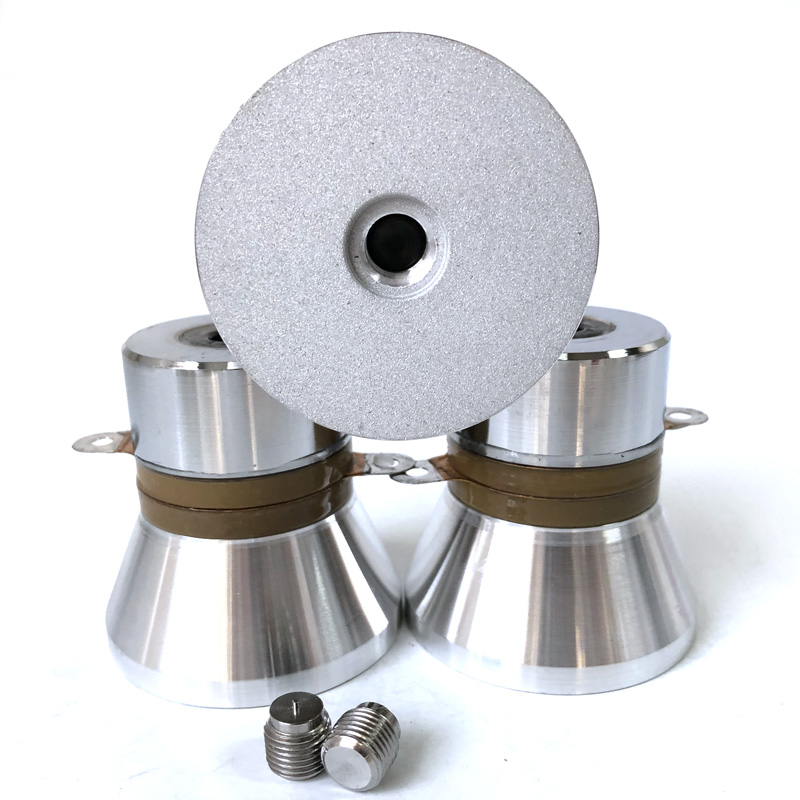

28K/40K Multi Frequency Ultrasonic Vibration Transducer Ultrasonic Transducer For Laboratory Ultrasonic Bath Cleaner

The characteristics of multi frequency ultrasonic cleaning transducers: Efficient cleaning: The multi frequency ultrasonic cleaning transducer can generate multiple frequencies of ultrasonic waves, which produce different vibration modes in the cleaning solution. It can effectively remove various types of dirt, th…

Send Inquiry

Chat Now

28K/40K Multi Frequency Ultrasonic Vibration Transducer Ultrasonic Transducer For Laboratory Ultrasonic Bath Cleaner

The characteristics of multi frequency ultrasonic cleaning transducers:

Efficient cleaning: The multi frequency ultrasonic cleaning transducer can generate multiple frequencies of ultrasonic waves, which produce different vibration modes in the cleaning solution. It can effectively remove various types of dirt, thus achieving the goal of efficient cleaning.
Strong adaptability: Multi frequency ultrasonic cleaning transducers have strong adaptability and can be applied to various types of cleaning liquids and environments, including strong acid, strong alkali, high temperature, high pressure, and other environments.
Easy to control: The frequency and power parameters of the multi frequency ultrasonic cleaning transducer can be adjusted through external electrical signals to achieve precise control of the cleaning process.
Environmental Protection and Energy Conservation: Multi frequency ultrasonic cleaning transducers have the characteristics of high efficiency, energy conservation, and environmental protection, which can effectively reduce cleaning costs and reduce environmental pollution.

Type	Full length(mm)	weight(g)	FR (khz)	impedance(Ω)	CP(Pf)±10%	power(w)
PT-UT38/80 KHZ P 4	61	330	38/80	<35	4800	50
PT-UT40/100KHZ P 4	54	280	41/100	<50	5200	40
PT-UT50K P4	42	135	50	<35	3200	25
PT-UT28/83/130 KHZ P 4	70	480	28/83/130	<30	5000	30
PT-UT25/45/80KHZ P4	78	540	25/45/80	<30	5000	30
PT-UT33/89/135KHZ P4	60	430	33/89/135	<30	5000	40
PT-UT28/41/123KHZ P4	68	630	28/41/123	<35	6800	60
PT-UT40/80/120K	56	260	120	<35	5400	30
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K	81	465	28/50/60/70/84	<35	5000	30
PT-UT40/77/100/170KHZ P4	55	270	40/77/100/170	<30	4000	30
