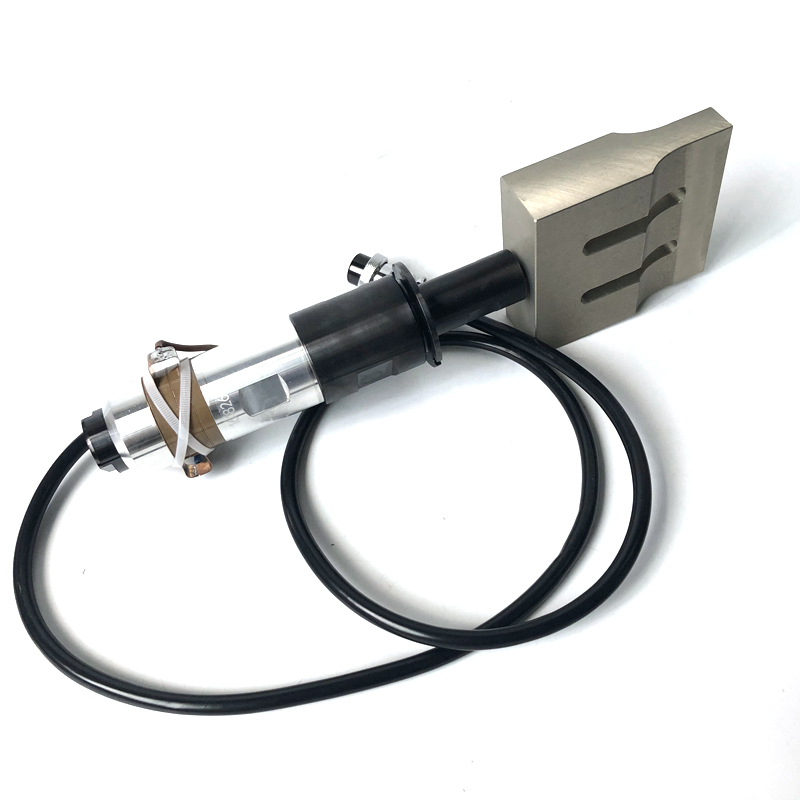

3000W 15KHZ Ultrasonic Welding Transducer With Booster Horn For Pet Pc Pe Ultrasonic Plastic Welding Machine

Ultrasonic welding transducer is the core component of ultrasonic welding equipment, which is responsible for converting electrical energy into mechanical energy, thereby driving ultrasonic vibration for welding operations. The quality of ultrasonic welding transducers directly affects the welding effect and equipmen…

Send Inquiry

Chat Now

3000W 15KHZ Ultrasonic Welding Transducer With Booster Horn For Pet Pc Pe Ultrasonic Plastic Welding Machine

Ultrasonic welding transducers are usually composed of piezoelectric ceramic components, variable amplitude rods, tool heads, etc. Piezoelectric ceramic components are the core components in transducers, which can convert electrical energy into mechanical energy and generate ultrasonic vibration through the inverse piezoelectric effect. The amplitude lever amplifies the amplitude of ultrasonic vibration to drive the tool head for welding operations. The tool head is the part that directly contacts the workpiece, and its shape and material will affect the welding effect.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
