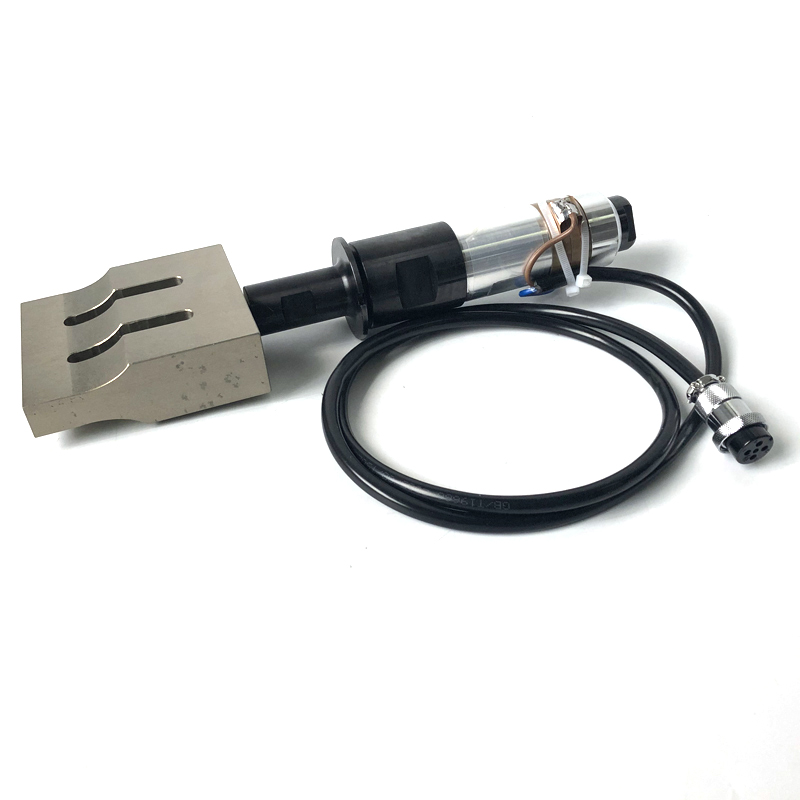

3000W 15KHZ Ultrasonic Welding Transducer With Booster Horn For Pet Pc Pe Ultrasonic Plastic Welding Machine

The ultrasonic plastic welding transducer mainly consists of the following parts:

Vibration head: converts electrical signals into mechanical vibrations, achieving the emission and transmission of ultrasonic waves.
Ultrasonic generator: generates high-frequency electrical signals to drive the vibrating head to produce ultrasonic waves.
Matching device: Concentrates the energy of ultrasonic waves on the plastic material to be welded, improving welding efficiency.
Fixed seat: Fix the transducer on the machine to achieve a stable working state.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
