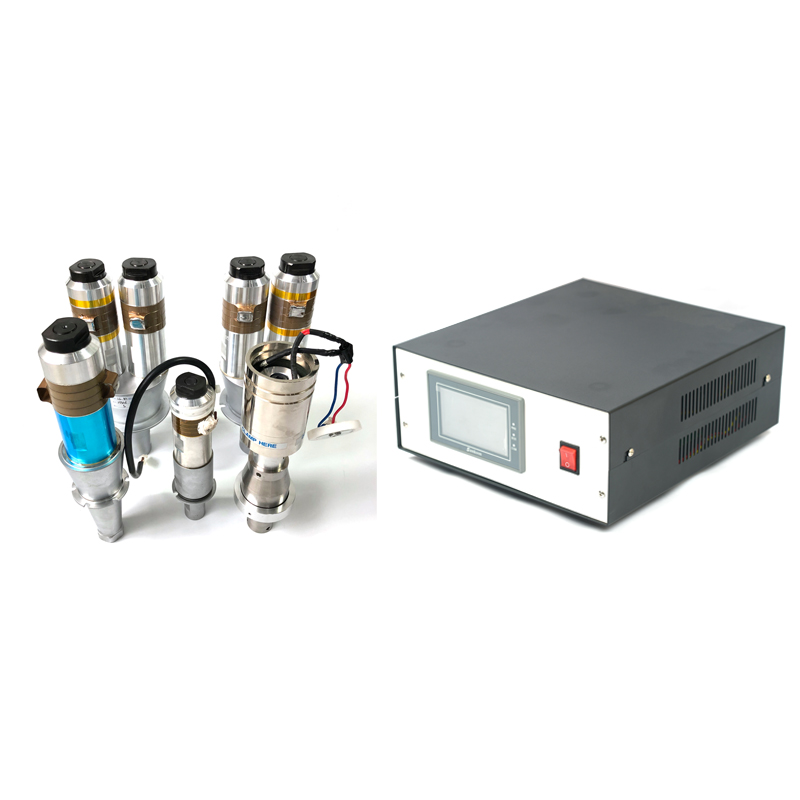

3000W 20KHZ Customized Ultrasonic Plastic Welding Transducer And Generator For Metal Welding Machine

The ultrasonic plastic welding transducer is the core component of the welding machine, which is mainly composed of a vibrator and an amplitude modulator. Its function is to transform electrical energy into mechanical energy through the simple harmonic vibration of the vibrator itself and driving the resonance of the entire transducer under the excitation of electrical signals. The transducer vibrator adopts sandwich structure, which is composed of front and rear drive blocks, piezoelectric wafers and electrode plates clamped by pre-stressed bolts. The front drive block and the amplitude modulator are assembled by connecting screws.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
