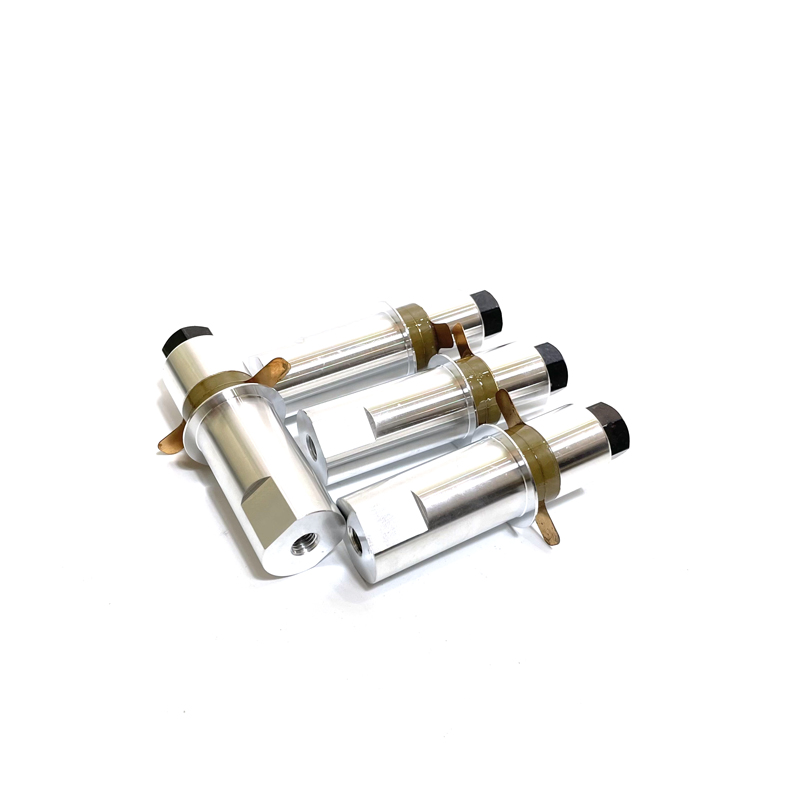

30khz Ultrasonic Spot Welding Transducer With Booster For PVC PE PP Plastic Welder

The principle of Ultrasonic Welding Transducer is similar to that of cleaning transducer. It also achieves high frequency vibration with large amplitude by applying prestress to counteract the expansion stress of piezoelectric ceramics. Because the welding transducer requires a large instantaneous power, it has high requirements for materials and processes, so it is a high-power acoustic transducer. Usually, the ultrasonic welding of plastic, metal and other materials is completed by combining the horn and the working head to form a high power, large amplitude vibration system.

Ultrasonic welding is to generate high-frequency friction and heat on the contact gap surface of the welded object under pressure through the ultrasonic vibration generated by the transducer, so as to achieve the purpose of thermal fusion welding.

Ultrasonic welding transducer is a kind of high-power transducer working in gaps or pulses, and its power is generally calculated by instantaneous peak power.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
PU-UWT30500 P8	77	M10×1.5	30	5	5500	500
PU-UWT28200 P4	92.1	M10×1	28	20	3000	200
PU-UWT28100 P8	91	M8×1	28	25	2200	100
PU-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
PU-UWT35100 P8	71	M8×1	35	25	2200	100
PU-UWT38100 P8	66	M8×1.25	38	40	1200	100
PU-UWT38200 P4	65	M8×1	38	14	3300	200
