38L Filter PCB Circuit Car Engine Parts Mold Tool DPF Metal Oil Rust Degrease Industrial Ultrasonic Cleaners
Die electrolytic ultrasonic cleaning machine 1、 Single slot mold cleaning equipment usage: used for cleaning plastic molds, hardware, modules, modules, mold nuts, pins, inserts, decontamination, high temperature carbon deposits, sulfides, gas, oil and rust removal. 2、 Description of technical para…

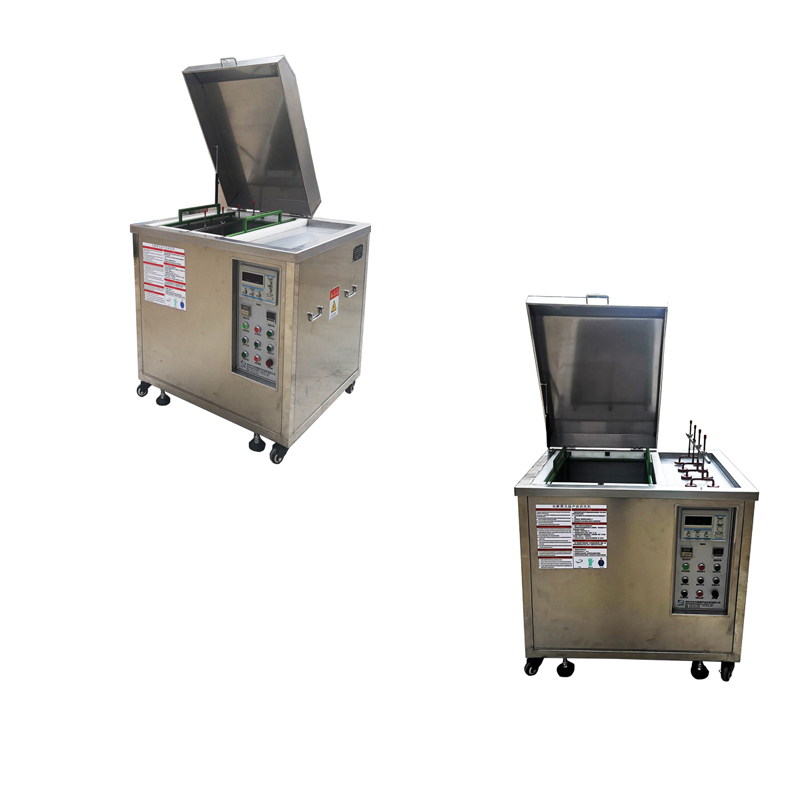

Die electrolytic ultrasonic cleaning machine
1、 Single slot mold cleaning equipment usage: used for cleaning plastic molds, hardware, modules, modules, mold nuts, pins, inserts, decontamination, high temperature carbon deposits, sulfides, gas, oil and rust removal.
2、 Description of technical parameters of electrolytic ultrasonic die washing machine
- Jinrong mold washing machine, with volumes of 10L, 20L, 30L and 50L respectively. The ultrasonic vibrating plate is welded from sus2.50 mm316 stainless steel plate; The left and right side plates are welded from sus2.0mm316 stainless steel plates; The external sealing door panel is made of sus3041.0 mm, with overall dimensions; 900 * 600 * 980 mm.
- The ultrasonic vibrator is a NTK wafer ultrasonic transducer in Japan, and the vibration mode is bottom shock type. The number of vibrators is 12-24 sets, the power is 50W/piece, and the frequency is 40Hz.
- The heater is a stainless steel external heating plate with a total heating power of 2kW, and the Omron temperature controller in Japan is a 0-110c digital temperature controller.
- The circulating pump is an American little giant magnetic pump with power of 20R, high temperature resistance and corrosion resistance.
Type | Frequency (Khz) | Power(W) | Capacity(L) |
PU-30LTT | 28KHZ,40KHZ | 1500 | 30 |
PU-50LTT | 28KHZ,40KHZ | 2500 | 50 |
PU-70LTT | 28KHZ,40KHZ | 3500 | 70 |
