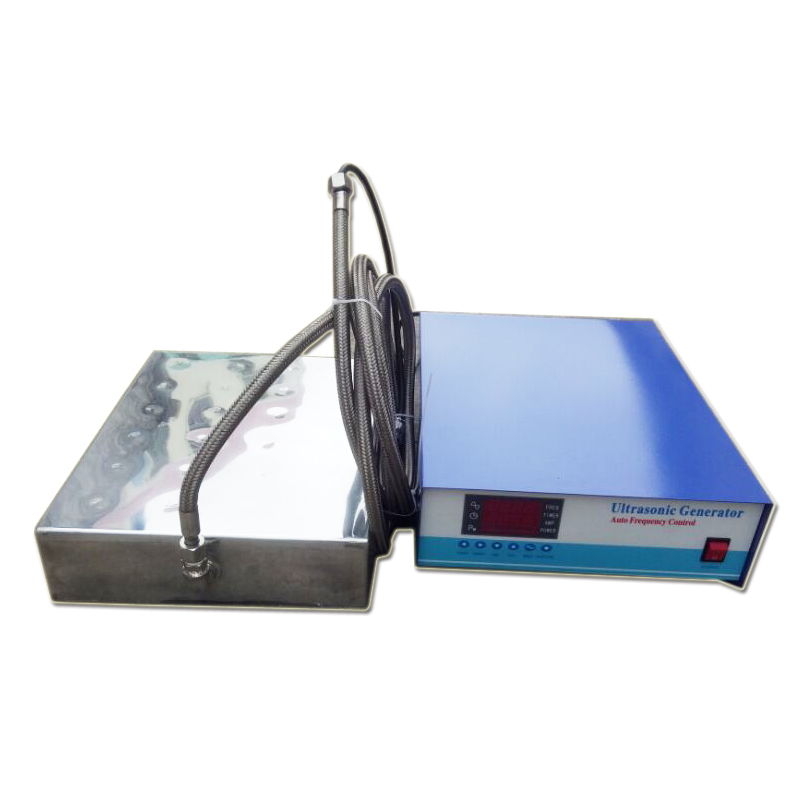

40khz Industrial Ultrasonic Cleaning Immersible Transducer Box With Ultrasonic Generator

The research on ultrasonic in foreign countries was earlier than that in China, but the research on ultrasonic cleaning technology and the development and application of equipment in China are almost synchronous with those in foreign countries. Ultrasonic cleaning is closely related to the development of modern science and technology and advanced manufacturing technology. Since the 1990s, the research on ultrasonic cleaning technology and the development of ultrasonic cleaning equipment have developed rapidly. The structural form of ultrasonic vibration box is extremely simple, and the ultrasonic transducer is installed inside the vibration box, The launching direction can be arranged at will, upward, leftward and rightward. In recent years, the appearance of LSA Rex ultrasonic vibration box has greatly improved the application mode of ultrasonic cleaning machine, which is increasingly used in machinery, optics, electronics, light industry, textile, chemical industry, shipping, medical and pharmaceutical industries.

The working principle of the ultrasonic vibration box is that the Ultrasonic Generator generates ultrasonic power higher than 20KHZ, which is converted into mechanical vibration of the same frequency through the same Ultrasonic transducer and sent into the ultrasonic cleaning solution. The forward transmission of ultrasonic density and density produces countless tiny bubbles, which are formed and grown in the negative pressure area of the longitudinal transmission of ultrasonic, and rapidly break in the positive pressure area. The formation, growth and rapid rupture process of such tiny bubbles is called “cavitation effect”. In the cavitation effect, the bubble breaks and generates an instantaneous high pressure of more than 10000 atmospheric pressure. The continuous instantaneous high pressure is like a series of small explosions that constantly bombard the object surface, causing the dirt on the object surface to fall off quickly.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300190100	25,28,33,40,80,130	300	6
PU-UITP600W	360275100	25,28,33,40,80,130	600	12
PU-UITP1000W	450350100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470380100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520450100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560450100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650450100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740520100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820540100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200590100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
