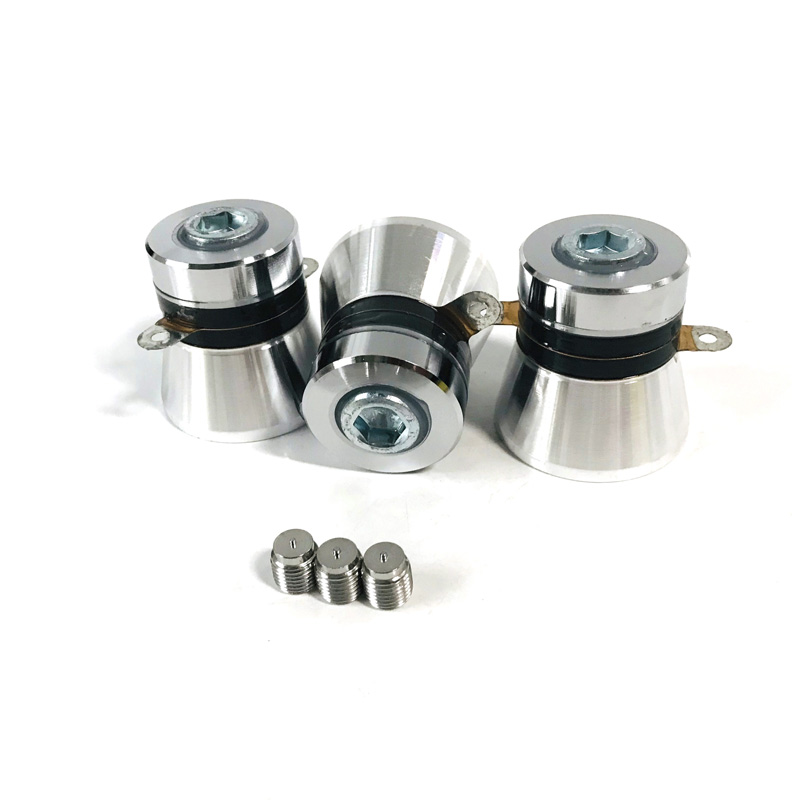

40KHZ Ultrasonic Piezoelectric Cleaning Transducer Sensor 50W For Generator Circuit Plate Washing Machine

The vibrator of 40khz ultrasonic cleaning transducer is designed with low impedance and low capacitance, which makes the ultrasonic transducer low in heat generation, good in matching and strong in amplitude. The vibrator of 40 khz ultrasonic cleaning transducer is composed of a launcher, a piezoelectric ceramic piec…

Send Inquiry

Chat Now

40KHZ Ultrasonic Piezoelectric Cleaning Transducer Sensor 50W For Generator Circuit Plate Washing Machine

PZT-4 and PZT-8 barium titanate materials are used as piezoelectric ceramics for 40khz ultrasonic cleaning transducer vibrator. Different materials have different capacitance values and different properties. 40khz ultrasonic cleaning transducer vibrator 50W uses 35 size piezoelectric ceramics, 60W uses 38.1 size piezoelectric ceramics, the larger the size, the greater the power.

40khz 50W/60W ultrasonic cleaning transducer vibrator is mainly used in: ultrasonic cleaning machine, ultrasonic cleaning power supply, ultrasonic cleaning equipment, automatic ultrasonic cleaning equipment, ultrasonic vibration plate box, digital ultrasonic cleaning machine, etc.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
PU-UT-20100 PZT-8	94	900	20	10-20	5200	100
PU-UT-25100 PZT-4	77	710	25	10-20	6600	100
PU-UT-28120 PZT-4	66	720	28	10-20	7800	120
PU-UT-28100 PZT-8	66	625	28	10-20	5200	100
PU-UT-28100 PZT-4	66	624	28	10-20	6600	100
PU-UT-30100 PZT-8	61	555	30	10-20	5200	100
PU-UT-2560 PZT-4	77	530	25	10-20	5400	60
PU-UT-2860 PZT-8	68	470	28	10-20	3800	60
PU-UT-2850 PZT-4	82	425	28	10-20	4100	50
PU-UT-3360 PZT-8	58	420	33	10-20	3800	60
PU-UT-4060 PZT-8	55	300	40	10-20	3800	60
PU-UT-4060 PZT-4	56	310	40	10-20	5400	60
PU-UT-4050 PZT-4	54	260	40	10-20	4100	50
PU-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
PU-UT-5435 PZT-4	36	135	54	10-20	3200	35
PU-UT-6860 PZT-8	80	460	68	10-20	3800	60
PU-UT-68120 PZT-4	67	588	68	10-20	7800	120
PU-UT-8060 PZT-4	60	325	80	10-20	5400	60
PU-UT-12060 PZT-4	56	260	120	10-20	5400	60
PU-UT-13550 PZT-4	54	215	135	10-20	4200	50
