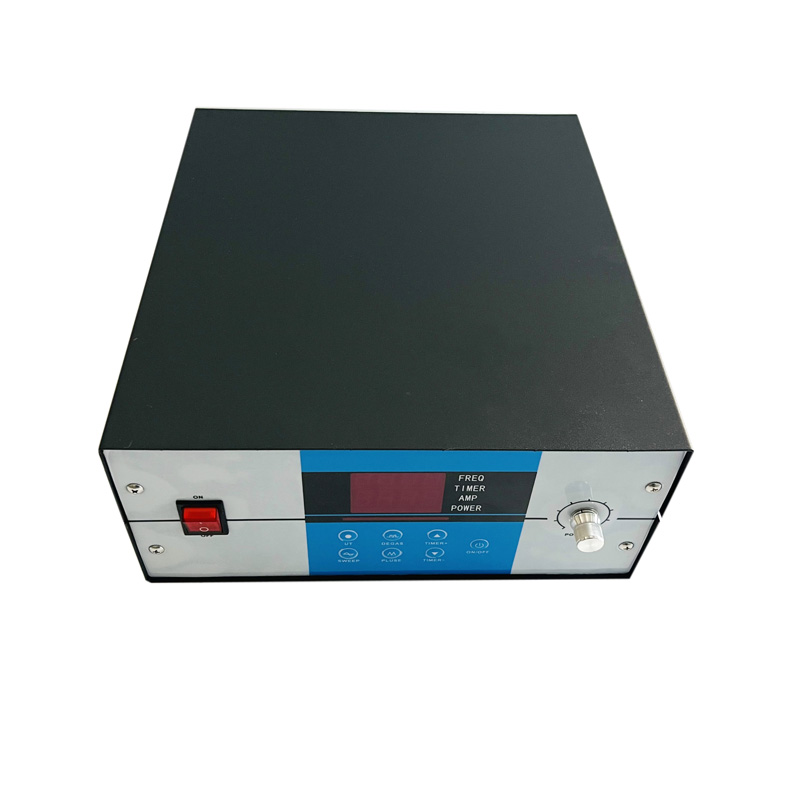

900W 28KHZ-40KHZ Industrial Ultrasonic Cleaning Generator And Cleaner Transducer For Industrial Cleaning Equipment

900W 28KHZ-40KHZ Industrial Ultrasonic Cleaning Generator And Cleaner Transducer For Industrial Cleaning Equipment

The industrial grade ultrasonic power generator used Matlab/Simulink software to simulate and verify the overall circuit topology and control system of the device. The simulation results verified the correctness and feasibility of the broadband adaptive high-power mechanical machining ultrasonic power supply system designed in this paper. Simulation research found that in constant power mode, after setting the power, through PI adjustment, the power quickly reaches the set power and stable output; We have designed a frequency tracking algorithm that combines coarse and fine precision with variable step size, achieving faster and higher accuracy in resonant frequency tracking, and ensuring that the transducer is in a resonant state in real-time.

Type	Power（W）	Frequency (KHz)	Siz
PU-DGN300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
PU-DGN3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	300x360x150
