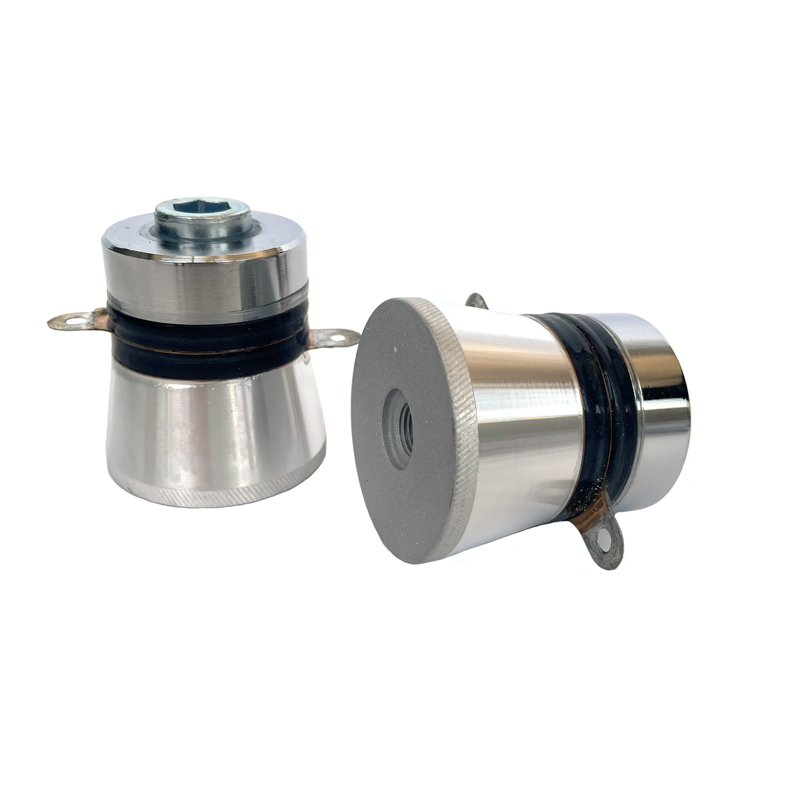

Dual Frequency Ultrasonic Transducer For Immersible Ultrasonic Vibrating Plate Transducer Box

Ultrasonic cleaning transducer is a device that can convert electrical energy into mechanical energy. It is widely used in various cleaning equipment, such as cleaning machines, ultrasonic cleaning machines, etc. Among them, the dual frequency ultrasonic cleaning transducer is a special type of ultrasonic cleaning tr…

Send Inquiry

Chat Now

Dual Frequency Ultrasonic Transducer For Immersible Ultrasonic Vibrating Plate Transducer Box

The main feature of a dual frequency ultrasonic cleaning transducer is that it can simultaneously output two different frequencies of ultrasonic waves, which allows it to clean at different frequencies and better adapt to various cleaning requirements. For example, for some difficult to clean dirt, high-frequency ultrasound can be used for cleaning, while for situations that require a larger cleaning area, low-frequency ultrasound can be used for cleaning. This type of transducer has higher flexibility and adaptability, and can meet various cleaning needs.

Type	Full length(mm)	weight(g)	FR (khz)	impedance(Ω)	CP(Pf)±10%	power(w)
PT-UT38/80 KHZ P 4	61	330	38/80	<35	4800	50
PT-UT40/100KHZ P 4	54	280	41/100	<50	5200	40
PT-UT50K P4	42	135	50	<35	3200	25
PT-UT28/83/130 KHZ P 4	70	480	28/83/130	<30	5000	30
PT-UT25/45/80KHZ P4	78	540	25/45/80	<30	5000	30
PT-UT33/89/135KHZ P4	60	430	33/89/135	<30	5000	40
PT-UT28/41/123KHZ P4	68	630	28/41/123	<35	6800	60
PT-UT40/80/120K	56	260	120	<35	5400	30
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K	81	465	28/50/60/70/84	<35	5000	30
PT-UT40/77/100/170KHZ P4	55	270	40/77/100/170	<30	4000	30
