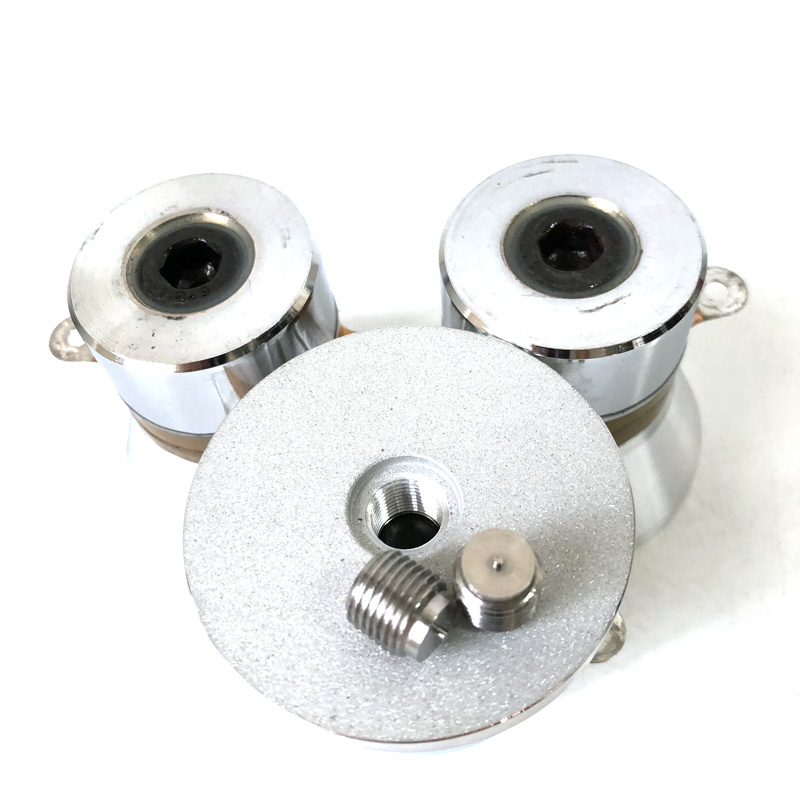

Multi Frequency 20K/40K/60K/120W Three Frequency Power Ultrasonic Transducer For Industrial Ultrasonic Cleaning Tanks

Multi Frequency 20K/40K/60K/120W Three Frequency Power Ultrasonic Transducer For Industrial Ultrasonic Cleaning Tanks

Multi frequency ultrasonic cleaning transducers are widely used in various fields that require efficient cleaning, such as mechanical processing, surface treatment, medical devices, optical instruments, electronic equipment, etc. In these fields, multi frequency ultrasonic cleaning transducers can effectively remove various types of dirt and impurities, improve product quality and equipment performance.
The multi frequency ultrasonic cleaning transducer, as an efficient, environmentally friendly, and energy-saving cleaning equipment, has been widely used. During use, we should choose appropriate parameters and methods based on specific cleaning needs and actual situations, in order to fully leverage their advantages and improve cleaning efficiency. At the same time, we should also pay attention to protecting the electrical and mechanical parts of the equipment, extending its service life and improving its reliability.

Type	Full length(mm)	weight(g)	FR (khz)	impedance(Ω)	CP(Pf)±10%	power(w)
PT-UT38/80 KHZ P 4	61	330	38/80	<35	4800	50
PT-UT40/100KHZ P 4	54	280	41/100	<50	5200	40
PT-UT50K P4	42	135	50	<35	3200	25
PT-UT28/83/130 KHZ P 4	70	480	28/83/130	<30	5000	30
PT-UT25/45/80KHZ P4	78	540	25/45/80	<30	5000	30
PT-UT33/89/135KHZ P4	60	430	33/89/135	<30	5000	40
PT-UT28/41/123KHZ P4	68	630	28/41/123	<35	6800	60
PT-UT40/80/120K	56	260	120	<35	5400	30
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K	81	465	28/50/60/70/84	<35	5000	30
PT-UT40/77/100/170KHZ P4	55	270	40/77/100/170	<30	4000	30
