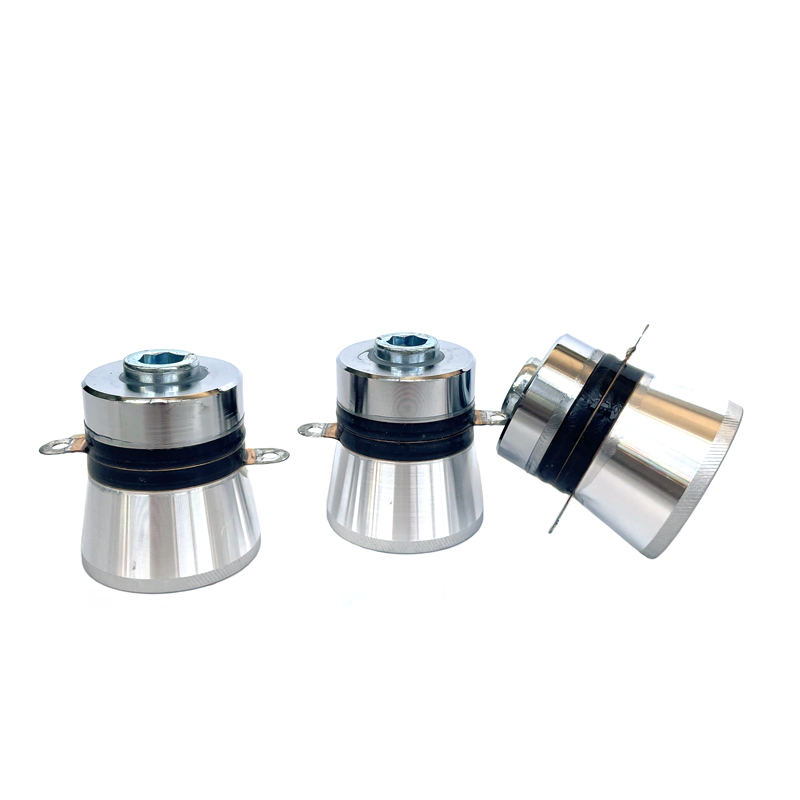

Multi Frequency Ultrasonic Transducer High Power Piezoelectric Ultrasonic Cleaning Transducer

The performance characteristics of multi frequency ultrasonic cleaning transducers mainly include high frequency, large amplitude, and low noise. High frequency means that the vibration speed of ultrasound is faster, which can quickly remove pollutants from the surface of components. Large amplitude can enhance the energy density of ultrasound, making it easier for pollutants to detach from the surface of components. Low noise indicates that the vibration energy of ultrasound is well controlled, and it will not cause excessive frequency generation noise to operators and the surrounding environment.

Type	Full length(mm)	weight(g)	FR (khz)	impedance(Ω)	CP(Pf)±10%	power(w)
PT-UT38/80 KHZ P 4	61	330	38/80	<35	4800	50
PT-UT40/100KHZ P 4	54	280	41/100	<50	5200	40
PT-UT50K P4	42	135	50	<35	3200	25
PT-UT28/83/130 KHZ P 4	70	480	28/83/130	<30	5000	30
PT-UT25/45/80KHZ P4	78	540	25/45/80	<30	5000	30
PT-UT33/89/135KHZ P4	60	430	33/89/135	<30	5000	40
PT-UT28/41/123KHZ P4	68	630	28/41/123	<35	6800	60
PT-UT40/80/120K	56	260	120	<35	5400	30
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K	81	465	28/50/60/70/84	<35	5000	30
PT-UT40/77/100/170KHZ P4	55	270	40/77/100/170	<30	4000	30
