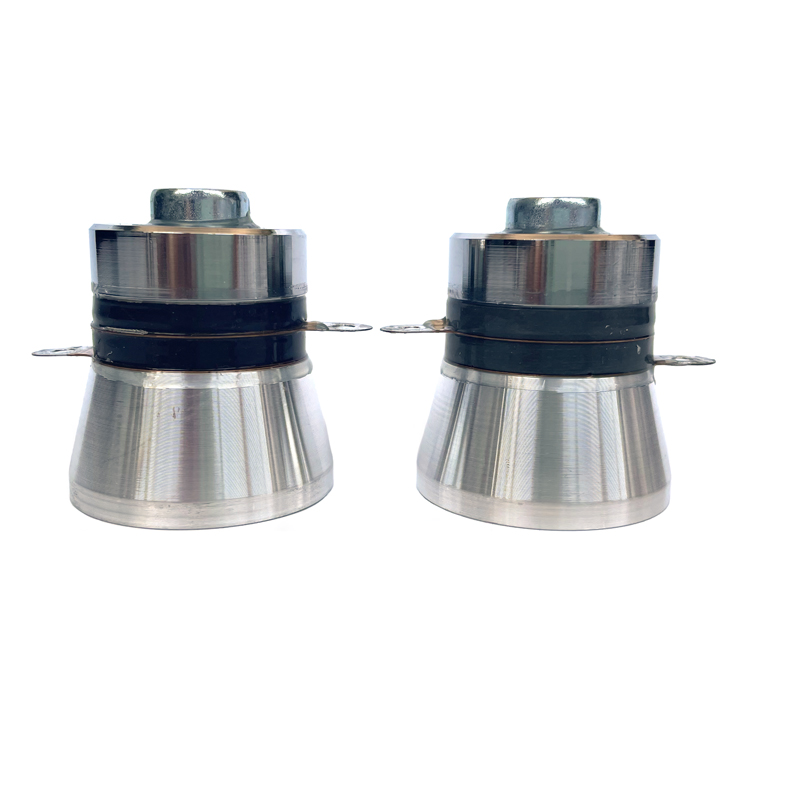

Multi Frequency Ultrasonic Vibration Transducer For Customized Submersible Ultrasonic Transducer

Send Inquiry

Chat Now

Multi Frequency Ultrasonic Vibration Transducer For Customized Submersible Ultrasonic Transducer

In summary, a multi frequency ultrasonic cleaning transducer is an advanced cleaning equipment with multiple advantages and application fields. Choosing a suitable ultrasonic cleaning transducer is of great significance for improving production efficiency and product quality. In the future, with the continuous development of technology, the performance and application fields of multi frequency ultrasonic cleaning transducers will continue to expand and improve.

Type	Full length(mm)	weight(g)	FR (khz)	impedance(Ω)	CP(Pf)±10%	power(w)
PT-UT38/80 KHZ P 4	61	330	38/80	<35	4800	50
PT-UT40/100KHZ P 4	54	280	41/100	<50	5200	40
PT-UT50K P4	42	135	50	<35	3200	25
PT-UT28/83/130 KHZ P 4	70	480	28/83/130	<30	5000	30
PT-UT25/45/80KHZ P4	78	540	25/45/80	<30	5000	30
PT-UT33/89/135KHZ P4	60	430	33/89/135	<30	5000	40
PT-UT28/41/123KHZ P4	68	630	28/41/123	<35	6800	60
PT-UT40/80/120K	56	260	120	<35	5400	30
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K	81	465	28/50/60/70/84	<35	5000	30
PT-UT40/77/100/170KHZ P4	55	270	40/77/100/170	<30	4000	30
