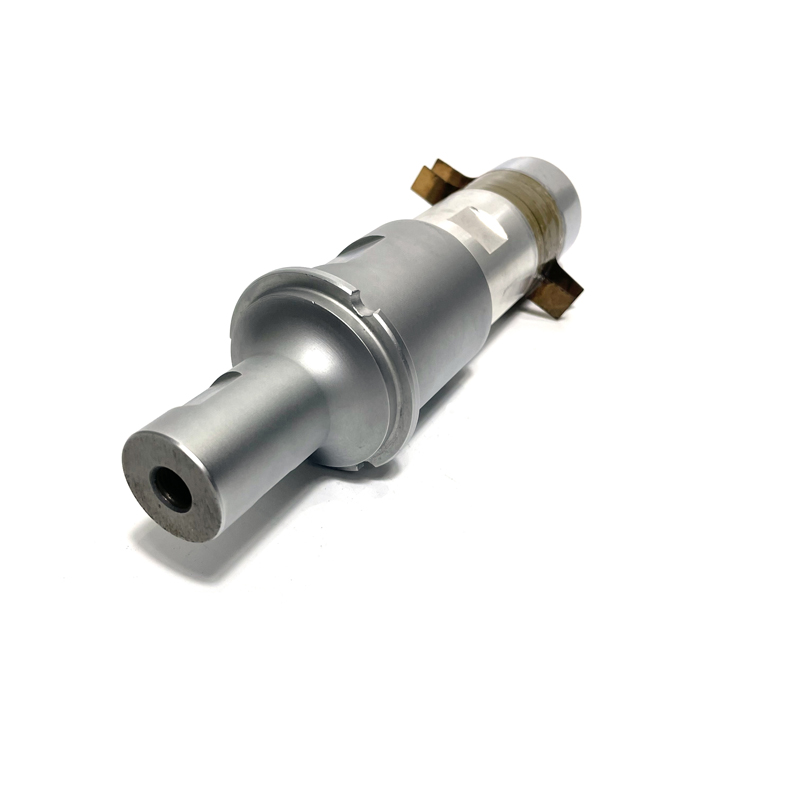

Replacement Branson Ultrasonic Welding Transducer Converter For Plastic Welders

Working principle and function of ultrasonic transducer:

An ultrasonic transducer is a piezoelectric ceramic that resonates at the operating frequency of ultrasound waves, converting electronic signals into mechanical vibrations through the piezoelectric effect of raw materials. An ultrasonic transducer is an energy converter device whose basic function is to convert input electrical power into mechanical power (i.e., ultrasound waves) and propagate it out, while consuming a small portion of the output power itself.

Types of ultrasonic transducers: They can be divided into piezoelectric transducers, sandwich transducers, column transducers, inverted horn transducers, and so on.

Ultrasonic transducers are generally divided into frequencies of 15K and 20K. The horn head portion of a 15K transducer is hexagonal, while the horn head portion of a 20K transducer is cylindrical.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
