Ultrasonic Vibration Transducer For Vibration Sifter 500 Mesh For Medicine Herb Coffee Bean Powder
The ultrasonic linear vibrating screen transducer oscillator has the following advantages: The structure of connecting the ultrasonic vibrating screen transducer with the screen can enhance the stress area of the screen, increase the stability of the screen, reduce the occurrence of compression deformation of the …
Ultrasonic Vibration Transducer For Vibration Sifter 500 Mesh For Medicine Herb Coffee Bean Powder
The ultrasonic linear vibrating screen transducer oscillator has the following advantages:
- The structure of connecting the ultrasonic vibrating screen transducer with the screen can enhance the stress area of the screen, increase the stability of the screen, reduce the occurrence of compression deformation of the screen, and improve the separation accuracy and effectiveness of the equipment;
- The use of a structure that combines curved protrusions and grooves can enhance the stress area of the screen, increase its stability, reduce the occurrence of compression deformation of the screen, and improve the separation accuracy and effectiveness of the equipment;
- The structure of connecting the ultrasonic vibration device with a fixed seat using elastic components can facilitate the adjustment of the height and angle of the ultrasonic vibration device, improving the adaptability of the equipment;
- The structure of connecting the ultrasonic vibration device with elastic components can facilitate the adjustment of the height and angle of the ultrasonic vibration device, improving the adaptability of the equipment;
- The structure of connecting the screen with a fixed seat using elastic components can facilitate the adjustment of the height and angle of the screen, improving the adaptability of the equipment.

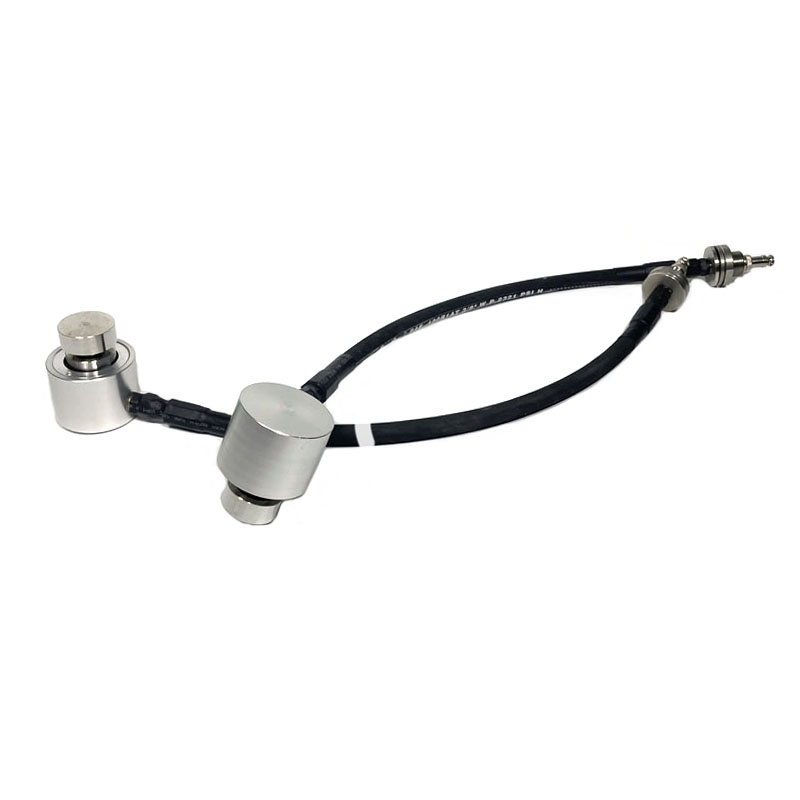

The ultrasonic vibrating screen transducer described in this design includes an upper transducer and a lower transducer. The upper transducer and the lower transducer are fixed together through a connecting plate. The upper transducer includes a shell and a piezoelectric ceramic oscillator located inside the shell. A cover plate is arranged above the piezoelectric ceramic oscillator, and the lower transducer includes a shell and an ultrasonic transducer located inside the shell.
Type | Frequency(KHz) | Input Power(W) |
PU-UVT-33 | 33KHZ | 100W |
PU-UVT-35 | 35KHZ | 100W |
