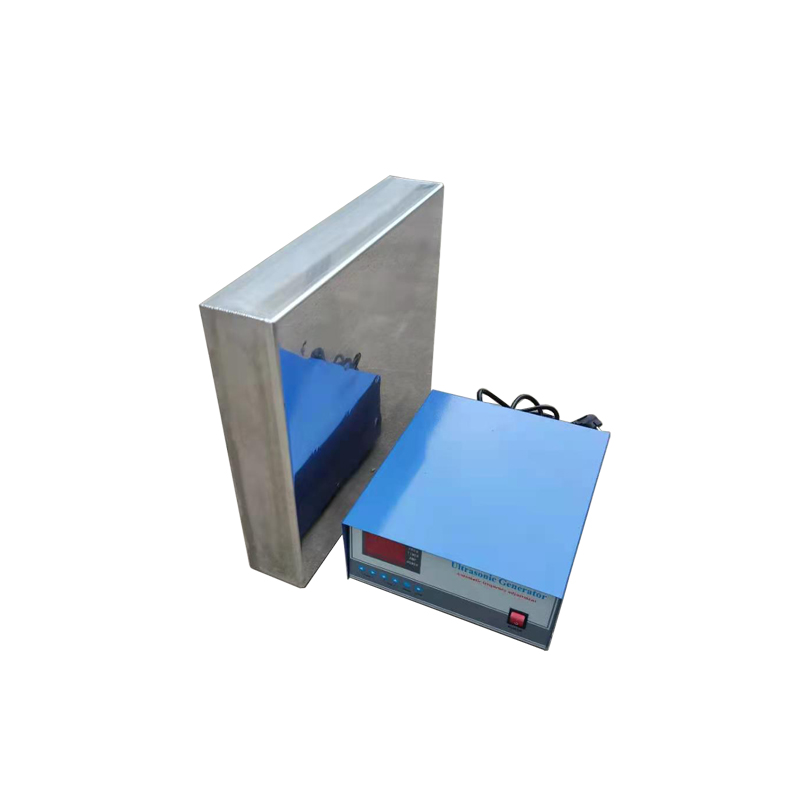

135khz 600W High Frequency Waterproof Submersible Ultrasonic Cleaning Transducer And Generator Control Box

135khz 600W High Frequency Waterproof Submersible Ultrasonic Cleaning Transducer And Generator Control Box

The non-standard ultrasonic vibration plate device consists of two parts: the vibration plate and the ultrasonic generator. Non standard ultrasonic vibrating plate | titanium vibrating plate | ultrasonic titanium vibrating plate | 316 ultrasonic vibrating plate | ultrasonic vibrating plate 304 | When the trough type Ultrasonic cleaning is not suitable for a specific working environment, the input vibrating plate device can be used. If there is an ordinary cleaning tank in the existing equipment, the vibrating plate device can be added and modified into a Ultrasonic cleaning.

All stainless steel structure, acid and alkali resistant, beautiful and durable.
The split structure is adopted, and the high-frequency connection with a socket is used between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance.
The installation layout is flexible, and can be made into three types according to different needs: bottom shock, side shock, and top shock to meet various cleaning requirements.
Note: See the characteristics of the ultrasonic generator in the single groove Ultrasonic cleaning.

Scope of application: cleaning electroplated parts before plating, clock and watch parts, hardware Machine element, polyester filter elements, semiconductor silicon chips, tools, lenses, spectacle frames, jewelry, glassware, etc.

The non-standard ultrasonic vibration plate has a stainless steel structure, and the overall ultrasonic titanium vibration plate is made of titanium alloy, which is acid and alkali resistant, beautiful and durable. The split structure is adopted, and the high-frequency connection with a socket is used between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance. The installation layout is flexible, and the ultrasonic radiation surface can be arranged on the bottom, side, or top surface of the cleaning tank as needed. (Three types: bottom shock, side shock, and top shock)

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300190100	25,28,33,40,80,130	300	6
PU-UITP600W	360275100	25,28,33,40,80,130	600	12
PU-UITP1000W	450350100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470380100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520450100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560450100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650450100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740520100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820540100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200590100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
