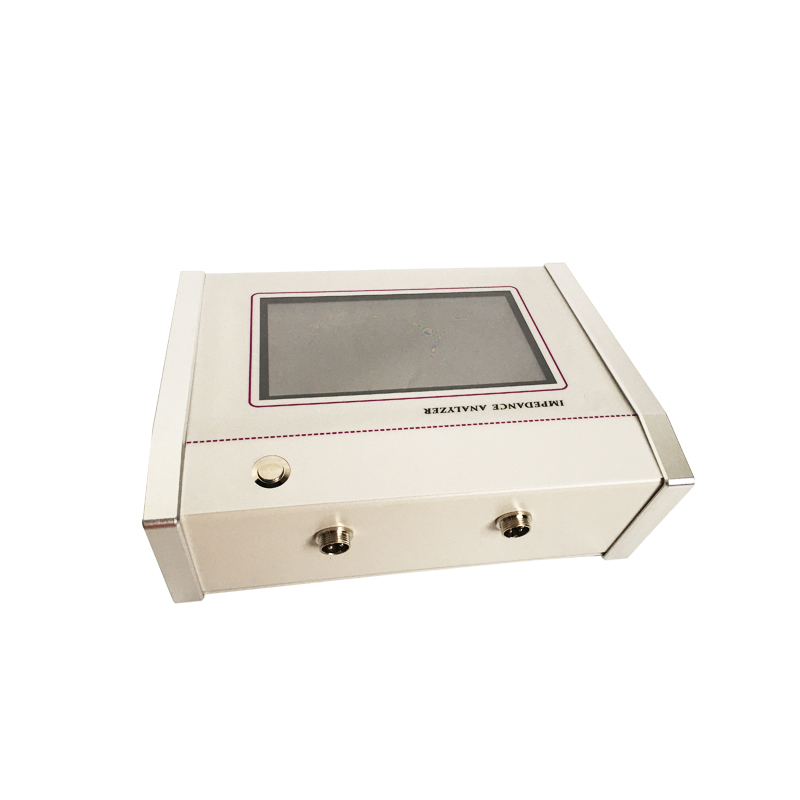

1KHz-500KHz Ultrasonic Impedance Analyzer Measuring Instrument Electronic Components And Piezoelectric Ceramic
The ultrasonic impedance analyzer product is a specialized performance testing instrument developed by our company in the ultrasonic field, providing comprehensive solutions for parameter and performance testing of piezoelectric ultrasonic devices and equipment. The MW-U201 ultrasonic impedance analyzer series produc…
The ultrasonic impedance analyzer product is a specialized performance testing instrument developed by our company in the ultrasonic field, providing comprehensive solutions for parameter and performance testing of piezoelectric ultrasonic devices and equipment. The MW-U201 ultrasonic impedance analyzer series products are a new generation of portable touch screen analyzers. Its characteristics are as follows: 1. The size is only 33cm * 23cm * (front 12cm and back 14.5cm), with a weight of only 2.35 kilograms, lightweight and portable; 2. Large touch screen, no physical buttons required
Type | PL-UIA500KHZ | PL-UIA1KHZ |
Frequency Range | 1KHZ-500Khz | 1Khz-1Mhz |
Measurement Index | All parameter, graphics | All parameter, graphics |
Measurement Accuracy | < 1% | < 0.5% |
Measurement Speed | 10 second/piece (equivalent to 600 scan dots ) | 5 second/piece(equivalent to 600 scan dots ) |
Frequency Accuracy | ±15ppm | ±5ppm |
Phase Resolution | 0.15 degree | 0.15 degree |
Enviroment temperature | 10-40 cº | 10-40 cº |
Impedance Range | 1Ω~1MΩ | 1Ω~1MΩ |
Frequency Step | 0.1Hz~any | 0.1Hz~any |
Application | Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical | Inspection production line of piezoelectric ceramic below 1MHz |
