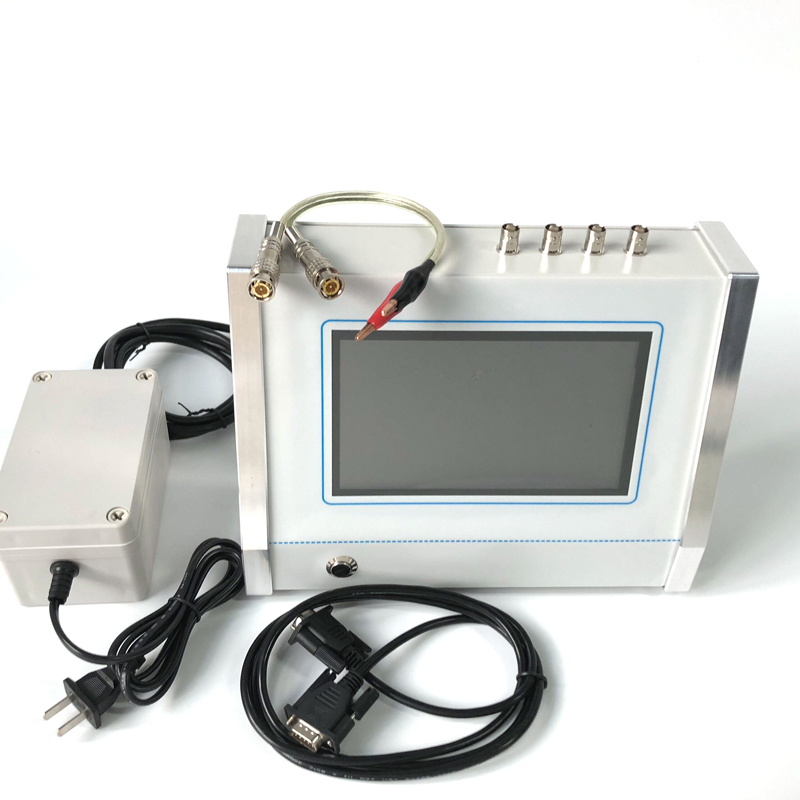

1MHZ-5MHZ Ultrasonic Impedance Analyzer Frequency Impedance Graphic Analyzer
Characteristics of the characteristic analyzer:
- High impedance measurement accuracy, up to 0.001KHz;
- It is easy to judge defects through admittance circles and logarithmic curves;
- The detection results completely distinguish between the vibration point and the half power point;
- The test data can be stored and printed by the computer, and the data source can be traced;
- Automatic filtering and statistics, parameter filtering can be set;
- High automation operation efficiency, simple operation, and avoidance of manual errors;
- Simple, easy to use, combined with indicators and graphics, accurate parameters, low price, and strong guidance for production.
Impedance tester application:
Transducers: The admittance circle diagram should not show parasitic circles, the resonant frequency should be as close as possible to the design frequency, the dynamic impedance should be low, the quality factor Qm should be close to the design requirements, and the capacitance should match the circuit.
Piezoelectric ceramic sheet: The device can be directly judged based on the admittance circle diagram and logarithmic coordinates. If there are layers or cracks inside the ceramic sheet, the logarithmic curve will have multiple peaks, and multiple parasitic small circles will appear on the admittance circle diagram.
The design, processing, and assembly of the horn are reasonable or have defects, which can be clearly seen on the guide circle diagram.
Type | PL-UIA500KHZ | PL-UIA1KHZ |
Frequency Range | 1KHZ-500Khz | 1Khz-1Mhz |
Measurement Index | All parameter, graphics | All parameter, graphics |
Measurement Accuracy | < 1% | < 0.5% |
Measurement Speed | 10 second/piece (equivalent to 600 scan dots ) | 5 second/piece(equivalent to 600 scan dots ) |
Frequency Accuracy | ±15ppm | ±5ppm |
Phase Resolution | 0.15 degree | 0.15 degree |
Enviroment temperature | 10-40 cº | 10-40 cº |
Impedance Range | 1Ω~1MΩ | 1Ω~1MΩ |
Frequency Step | 0.1Hz~any | 0.1Hz~any |
Application | Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical | Inspection production line of piezoelectric ceramic below 1MHz |
1MHZ-5MHZ Ultrasonic Impedance Analyzer Frequency Impedance Graphic Analyzer
