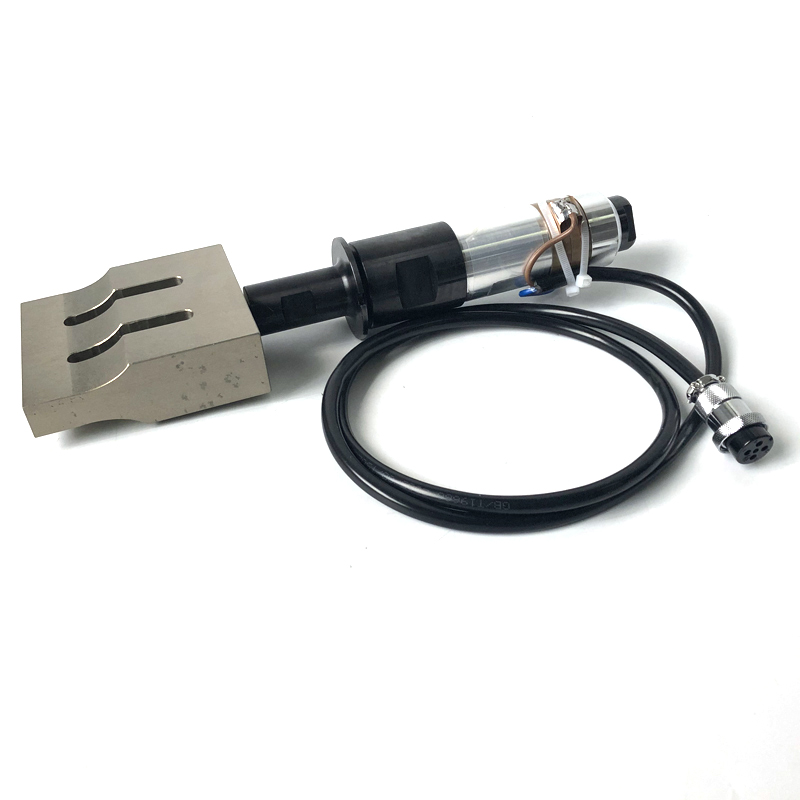

20KHZ 3000W Piezoelectric Ceramic Ultrasonic Welding Transducer Booster Horn For Automatic Ultrasonic Plastic Welding Machine
In order to improve the performance and efficiency of industrial ultrasonic plastic welding transducers, many domestic and foreign research institutions and enterprises have been actively carrying out related research and technological innovation in recent years. For example, by optimizing the structural design of tr…
In order to improve the performance and efficiency of industrial ultrasonic plastic welding transducers, many domestic and foreign research institutions and enterprises have been actively carrying out related research and technological innovation in recent years. For example, by optimizing the structural design of transducers, improving the performance of piezoelectric ceramics, and improving welding processes, the performance and service life of transducers can be continuously improved. At the same time, with the development of artificial intelligence, machine vision and other technologies, ultrasonic welding equipment has gradually achieved automation and intelligence, further improving production efficiency and product quality.
Industrial ultrasonic plastic welding transducers, as an important industrial equipment, are playing an increasingly important role in modern industrial production. With the continuous progress and innovation of technology, it is believed that it will continue to exert greater potential in the future and make greater contributions to industrial development.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power (W) |
| PLS-HJHNQ152600 | 153 | M20×1.5 | 15 | 15 | 13000 | 2600 |
| PLS-HJHNQ152000 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| PLS-HJHNQ202000 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| PLS-HJHNQ30500 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| PLS-HJHNQ28200 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| PLS-HJHNQ28100 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| PLS-HJHNQ28250 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| PLS-HJHNQ202000 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| PLS-HJHNQ201500 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| PLS-HJHNQ38100 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| PLS-HJHNQ38200 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
