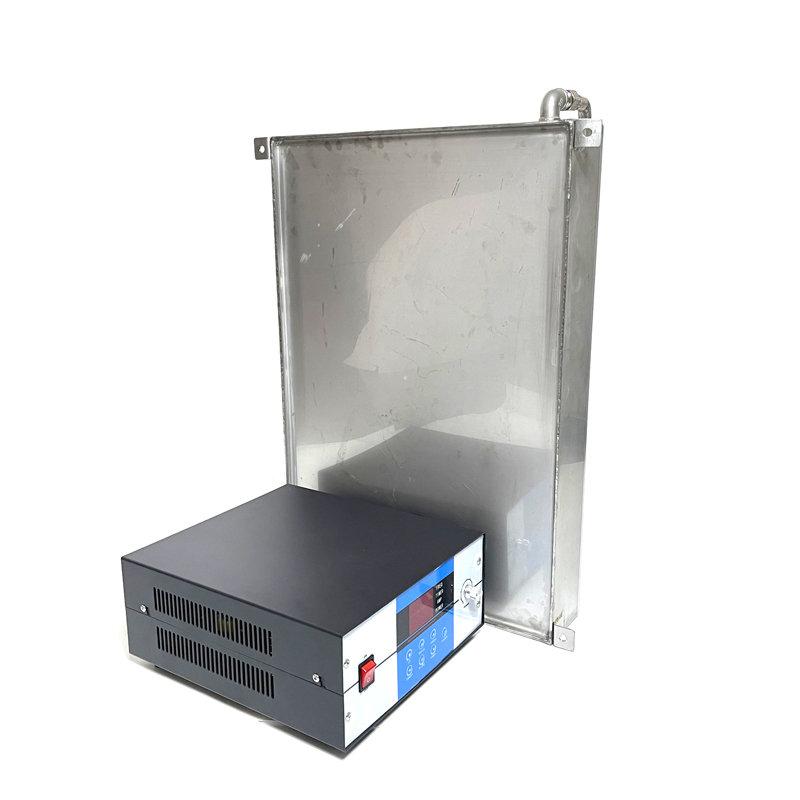

40KHZ/80KHZ/120KHZ 1000W High Power Multifrequency Submersible Ultrasonic Cleaner With Vibration Generator
The ultrasonic vibration plate is equipped with a sweep type ultrasonic system. The LED digital display can intuitively grasp the working status. The ultrasonic output can move periodically in the lotion. The ultrasonic power is strong and uniform to avoid the phenomenon of cleaning dead angle caused by the uneven ou…
The ultrasonic vibration plate is equipped with a sweep type ultrasonic system. The LED digital display can intuitively grasp the working status. The ultrasonic output can move periodically in the lotion. The ultrasonic power is strong and uniform to avoid the phenomenon of cleaning dead angle caused by the uneven output of the old ultrasonic.
■ Suitable for electroplating pretreatment, coating pretreatment, cleaning of various metal and plastic parts, and continuous operation cleaning.
■ Current display working mode, frequency display working mode and time setting working mode.
■ Safety protection: overcurrent protection, open circuit protection, short circuit protection, overheat protection and other functions
■ Power adjustable (0%~100%), cleaning time adjustable: 1~99Min
■ Suitable for continuous cleaning of various metal, plastic and other workpieces.
■ Compact structure, powerful power, fast and effective cleaning.
■ Set the bearing bracket and anti-collision reinforcing beam in the groove to effectively protect the groove.
■ Use the electric hoist, traveling crane or manual loading and unloading of workpieces in the workshop to adapt to the cleaning rhythm of different needs of various workpieces.
| Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
| PU-UITP300WT | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
| PU-UITP600WT | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
| PU-UITP1000WT | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
| PU-UITP1200WT | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
| PU-UITP1500WT | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
| PU-UITP1800WT | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
| PU-UITP2000WT | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
| PU-UITP2400WT | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
| PU-UITP3000WT | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
| PU-UITP5000WT | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
| OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power） |
