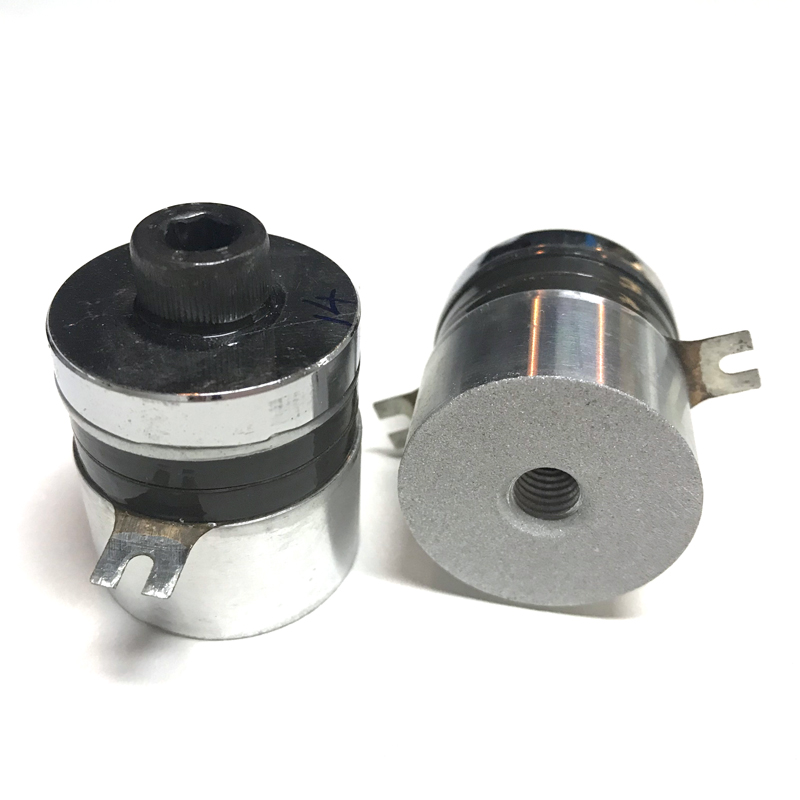

50KHZ 35W Customized High Frequency Ultrasonic Cleaner Transducer For Ultrasonic Washing Machine
Piezoelectric ultrasonic vibrator transducer can be divided into yellow film Ultrasonic Cleaning Transducer and black film ultrasonic cleaning transducer, while the black film cleaning transducer has a strong cleaning force, which is commonly used by cleaning manufacturers; The stability comparison number of the ultr…
50KHZ 35W Customized High Frequency Ultrasonic Cleaner Transducer For Ultrasonic Washing Machine
Piezoelectric ultrasonic vibrator transducer can be divided into yellow film Ultrasonic Cleaning Transducer and black film ultrasonic cleaning transducer, while the black film cleaning transducer has a strong cleaning force, which is commonly used by cleaning manufacturers; The stability comparison number of the ultrasonic cleaning transducer for yellow film cleaning can only be used for special purposes. It is commonly used for 17 khz or 20 khz.
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance (Ω) | Static Capacity (pF)±10% | Input Power(W) |
PLS-QXHNQ20100 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PLS-QXHNQ25100 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PLS-QXHNQ28100 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PLS-QXHNQ2560 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PLS-QXHNQ2860 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PLS-QXHNQ2850 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PLS-QXHNQ3360 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PLS-QXHNQ4060 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PLS-QXHNQ4050 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PLS-QXHNQ5435 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PLS-QXHNQ6860 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PLS-QXHNQ68120 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PLS-QXHNQ8060 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PLS-QXHNQ12060 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PLS-QXHNQ13550 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
50KHZ 35W Customized High Frequency Ultrasonic Cleaner Transducer For Ultrasonic Washing Machine
标签:Customized High Frequency Ultrasonic Cleaner Transducer, High Frequency Ultrasonic Cleaner Transducer, Piezoelectric ultrasonic vibrator transducer, Ultrasonic Cleaning Transducer
