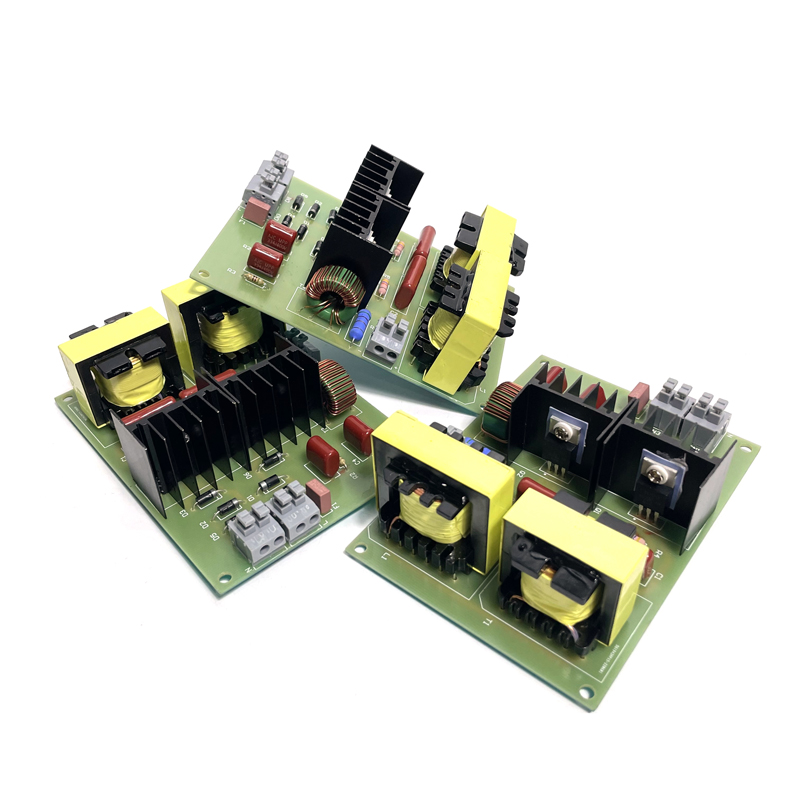

Ultrasonic Generator Circuit PCB Ultrasonic Power Frequency Piezoceramic Ultrasonic Transducer Driver Board
The core component of ultrasonic drive circuit board is piezoelectric ceramic sheet, whose performance directly affects the generation and transmission effect of ultrasonic waves. Piezoelectric ceramic sheet is a ceramic material with piezoelectric effect, which has good mechanical and electrical properties. In ultra…
The core component of ultrasonic drive circuit board is piezoelectric ceramic sheet, whose performance directly affects the generation and transmission effect of ultrasonic waves. Piezoelectric ceramic sheet is a ceramic material with piezoelectric effect, which has good mechanical and electrical properties. In ultrasonic driven circuit boards, piezoelectric ceramic sheets are fixed on a metal substrate and connected to the circuit through electrodes. When a certain frequency of AC signal is input into the circuit, the piezoelectric ceramic plate will undergo high-frequency vibration, resulting in ultrasonic waves.
Type | Power | Frequency | Voltage | Current |
PLS-GP50W | 50W | 20,25,28,33,40 | 220V | 0.3 |
PLS-GP60W | 60W | 20,25,28,33,40 | 220V | 0.3 |
PLS-GP100W | 100W | 20,25,28,33,40 | 220V | 0.45 |
PLS-GP120W | 120W | 20,25,28,33,40 | 220V | 0.54 |
PLS-GP150W | 150W | 20,25,28,33,40 | 220V | 0.68 |
PLS-GP180W | 180W | 20,25,28,33,40 | 220V | 080 |
PLS-GP200W | 200W | 20,25,28,33,40 | 220V | 0.90 |
标签:Piezoceramic Ultrasonic Transducer Driver Board, Ultrasonic Generator Circuit PCB
