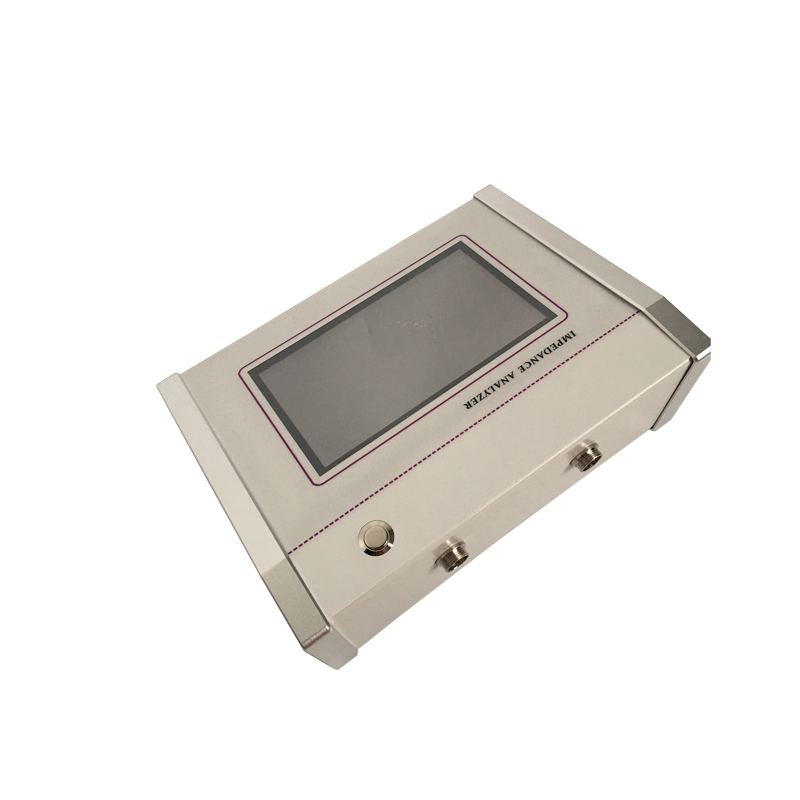

1kHz~1MHz Ultrasonic Transducer Impedence Analyzer Ultrasonic Measuring Device Analysis
Ultrasonic impedance analyzer is a very useful non-destructive testing instrument that can quickly and accurately detect defects and unevenness inside materials. By using this instrument, enterprises can produce higher quality products, improve production efficiency, and reduce production costs. In the future, with the continuous development of technology, the application prospects of ultrasonic impedance analyzers will be even broader.
| Type | PL-UIA500KHZ | PL-UIA1KHZ |
| Frequency Range | 1KHZ-500Khz | 1Khz-1Mhz |
| Measurement Index | All parameter, graphics | All parameter, graphics |
| Measurement Accuracy | < 1% | < 0.5% |
| Measurement Speed | 10 second/piece (equivalent to 600 scan dots ) | 5 second/piece(equivalent to 600 scan dots ) |
| Frequency Accuracy | ±15ppm | ±5ppm |
| Phase Resolution | 0.15 degree | 0.15 degree |
| Enviroment temperature | 10-40 cº | 10-40 cº |
| Impedance Range | 1Ω～1MΩ | 1Ω～1MΩ |
| Frequency Step | 0.1Hz～any | 0.1Hz～any |
| Application | Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical | Inspection production line of piezoelectric ceramic below 1MHz |
