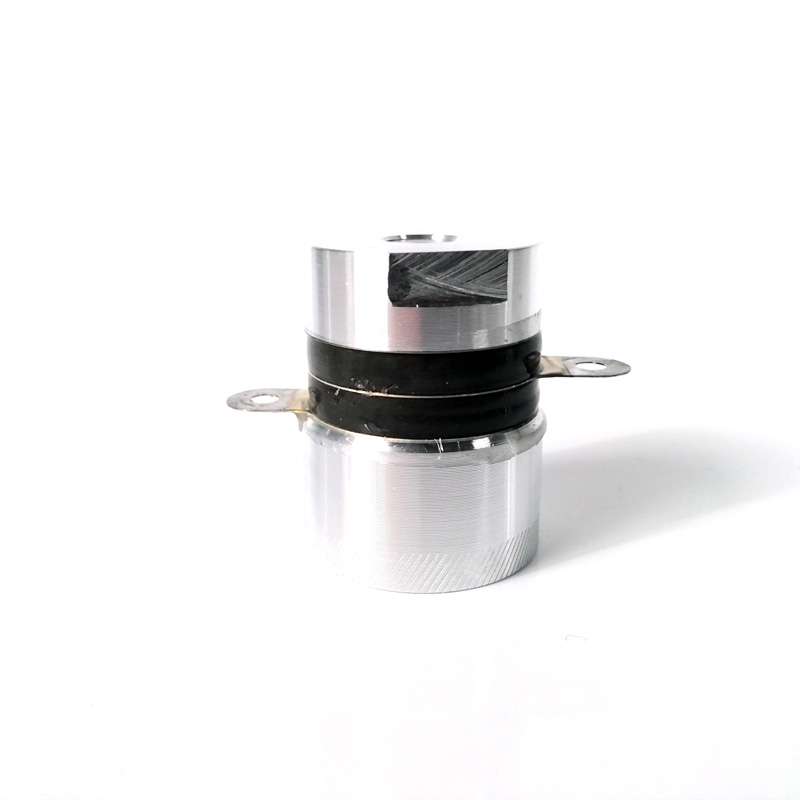

50KHZ High Frequency Ultrasonic Cleaner Transducer For Industrial Ultrasonic Vibration Cleaner

High frequency ultrasonic transducer/vibrator Ultrasonic vibrator, also known as ultrasonic vibrating head, is one of ultrasonic transducer and the core component of ultrasonic cleaning machine. Industry standard name: ultrasonic transducer, which belongs to piezoelectric ceramic materials, is one of the main acce…

Send Inquiry

Chat Now

50KHZ High Frequency Ultrasonic Cleaner Transducer For Industrial Ultrasonic Vibration Cleaner

High frequency ultrasonic transducer/vibrator

Ultrasonic vibrator, also known as ultrasonic vibrating head, is one of ultrasonic transducer and the core component of ultrasonic cleaning machine. Industry standard name: ultrasonic transducer, which belongs to piezoelectric ceramic materials, is one of the main accessories of ultrasonic cleaning machine. In terms of power, a single ultrasonic vibration head is 60W and 100W. The frequencies are: 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, 120khz, 135khz, 175khz, 200khz or higher; The differences in shape include: straight column shape, horn shape, and cleaning. Different product layouts have different requirements, such as the degree of oil contamination, difficulty of cleaning, the level of cleaning requirements, and the design of cleaning processes, all of which require targeted selection.

Type	Length(mm)	Weight(g)	Frequency(KHz)	Resonance Impedance (Ω)	Static Capacity (pF)±10%	Input Power(W)
PLS-QXHNQ20100	94	900	20	10-20	5200	100
PLS-QXHNQ25100	77	710	25	10-20	6600	100
PLS-QXHNQ28100	66	624	28	10-20	6600	100
PLS-QXHNQ2560	77	530	25	10-20	5400	60
PLS-QXHNQ2860	68	470	28	10-20	3800	60
PLS-QXHNQ2850	82	425	28	10-20	4100	50
PLS-QXHNQ3360	58	420	33	10-20	3800	60
PLS-QXHNQ4060	56	310	40	10-20	5400	60
PLS-QXHNQ4050	57	300	40	10-20	4100	50
PLS-QXHNQ5435	36	135	54	10-20	3200	35
PLS-QXHNQ6860	80	460	68	10-20	3800	60
PLS-QXHNQ68120	67	588	68	10-20	7800	120
PLS-QXHNQ8060	60	325	80	10-20	5400	60
PLS-QXHNQ12060	56	260	120	10-20	5400	60
PLS-QXHNQ13550	54	215	135	10-20	4200	50
