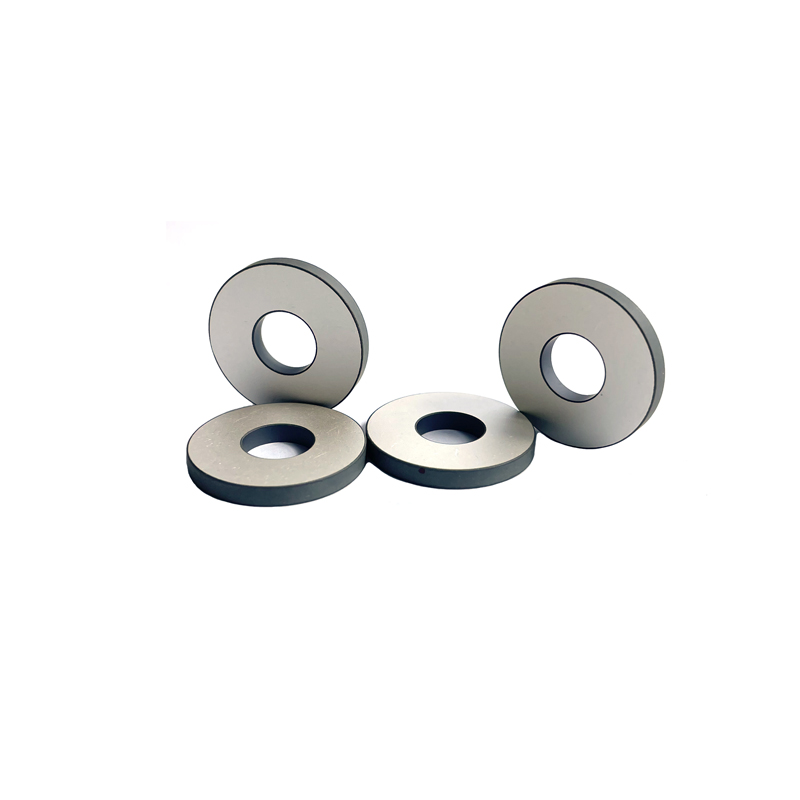

Disc Piezo 25-10-4 Ultrasonic Transducer Sensors Piezoelectric Ceramic Components Piezo Crystal pzt4 OD25*ID10*4mm
Enterprises producing piezoelectric components and sensors, especially piezoelectric components with more varieties. There are nearly 40 mature material formulas for underwater acoustics, electroacoustics, ultrasound, metrology, communication, detection, automatic control, ignition and detonation, which provide thous…
Enterprises producing piezoelectric components and sensors, especially piezoelectric components with more varieties. There are nearly 40 mature material formulas for underwater acoustics, electroacoustics, ultrasound, metrology, communication, detection, automatic control, ignition and detonation, which provide thousands of varieties of products for dozens of domestic industries, more than 400 manufacturers and scientific research institutions every year. Some products are exported abroad, and enterprises have won a high reputation at home and abroad.
spec | Dimension (mm) | Radial frequency (KHz) | Capacitance (pf) | Dielectric dissipation factor tanδ(%) | Electromechanical coupling coefficient (Kr) | Impedance Zr(Ω) | Thickness frequency (KHz) |
PU-PC25103 | Φ25×Φ10×3 | 66.4 | 1240±12.5% | ≤0.3 | ≥0.46 | ≤15 | 683±5% |
PU-PC225104 | Φ25×Φ10×4 | 66.4 | 930±12.5% | ≤0.3 | ≥0.46 | ≤15 | 512±5% |
PU-PC40155 | Φ40×Φ12×5 | 45.9 | 2070±12.5% | ≤0.3 | ≥0.46 | ≤15 | 410±5% |
PU-PC40155 | Φ40×Φ15×5 | 42.2 | 1960±12.5% | ≤0.3 | ≥0.46 | ≤15 | 323±5% |
PU-PC40176 | Φ40×Φ17×6 | 40.5 | 1555±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC40205 | Φ40×Φ20×5 | 37.9 | 1700±12.5% | ≤0.3 | ≥0.47 | ≤15 | 410±5% |
PU-PC50206 | Φ50×Φ20×6 | 33.2 | 2490±12.5% | ≤0.3 | ≥0.46 | ≤15 | 341±5% |
PU-PC501765 | Φ50×Φ17×6.5 | 34.8 | 2430±12.5% | ≤0.3 | ≥0.46 | ≤15 | 315±5% |
PU-PC50236 | Φ50×Φ23×6 | 31.2 | 2340±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC50276 | Φ50×Φ27×6 | 29.3 | 2100±12.5% | ≤0.3 | ≥0.47 | ≤15 | 341±5% |
PU-PC603010 | Φ60×Φ30×10 | 25.3 | 1922±12.5% | ≤0.3 | ≥0.47 | ≤18 | 205±5% |
标签:Disc Piezo 25-10-4 Ultrasonic Transducer Sensors, Piezoelectric Ceramic Components Piezo Crystal
