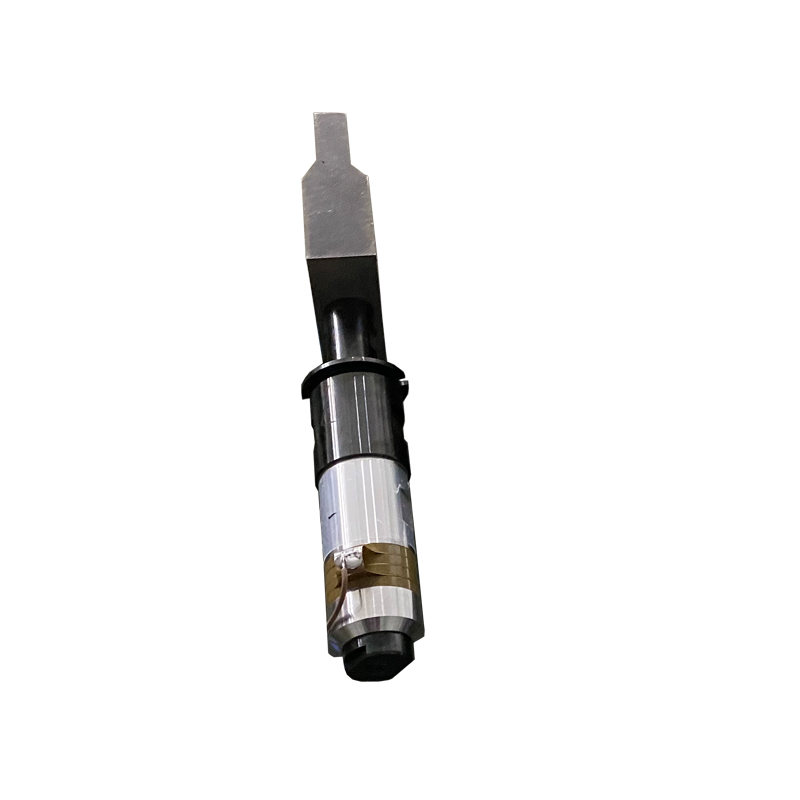

Piezoelectric Ultrasonic Welding Transducer Booster Horn For High Power Ultrasonic Plastic Welding Machine

Piezoelectric Ultrasonic Welding Transducer Booster Horn For High Power Ultrasonic Plastic Welding Machine

Ultrasonic transducers have a wide range of applications in various fields, such as medical, industrial, military, and more. Therefore, the research and practice of welding ultrasonic transducer oscillators not only helps to improve the performance and stability of transducers, but also promotes the development and progress of related fields. We need to constantly learn and explore new technologies and methods to adapt to constantly changing market demands and application scenarios.Ultrasonic transducers have a wide range of applications in various fields, such as medical, industrial, military, and more. Therefore, the research and practice of welding ultrasonic transducer oscillators not only helps to improve the performance and stability of transducers, but also promotes the development and progress of related fields. We need to constantly learn and explore new technologies and methods to adapt to constantly changing market demands and application scenarios.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
