PZT-4 15KHZ 3000W Ultrasonic Welding Transducer For Ultrasonic Seamless Sealing Welding Machine

PZT-4 15KHZ 3000W Ultrasonic Welding Transducer For Ultrasonic Seamless Sealing Welding Machine

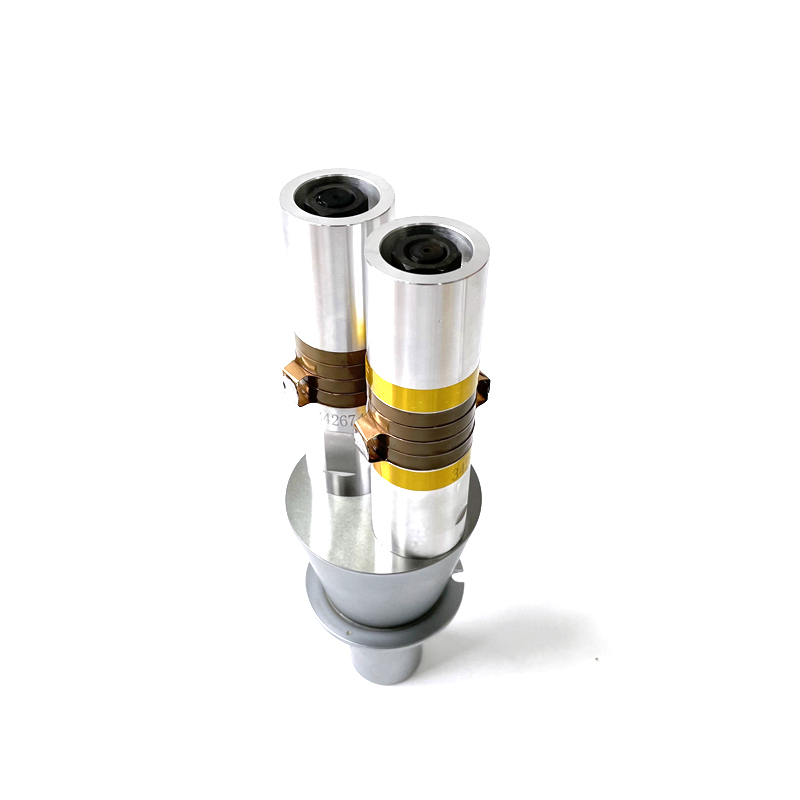

Ultrasonic welding transducers, similar in principle to cleaning transducers, also achieve large amplitude high-frequency vibration by applying pre-stress to counteract the expansion stress of piezoelectric ceramics. Due to the high instantaneous power required for welding transducers, they have high requirements for materials and processes, and are classified as high-power acoustic energy transducers. Usually, a high-power and large-amplitude vibration system is composed of a horn and a working head to complete ultrasonic welding of materials such as plastic and metal.

Ultrasonic welding is the use of ultrasonic vibrations generated by transducers to generate high-frequency friction and heat on the contact gap surface of the welded object under pressure, thereby achieving the goal of thermal fusion welding.

Ultrasonic welding transducers are high-power transducers that operate in gaps or pulses, and their power is generally calculated based on instantaneous peak power.

Product installation matters

Precautions for installing transducers from our company:

Select appropriate materials and adjust the hardness process to process and produce the variable amplitude pole and working head.
When installing the amplitude converter or working head, it is necessary to pay attention to frequency matching and apply sound conductive adhesive at the joint.
Use solvents such as acetone to clean the joined surface during installation
Establish an impedance control process for the bonding process to reduce the bonding impedance of the oscillator and improve its electro-acoustic conversion efficiency.
Pay attention to improving the insulation measures of the oscillator electrode after installation.

Type	Full-length(mm)	Joint Bolt(mm)	Frequency(KHz)	Resonance Impedance(Ω)	Capacity(pF)	Input Power (W)
PLS-HJHNQ152600	153	M20×1.5	15	15	13000	2600
PLS-HJHNQ152000	167	M20×1.5	15	10	9500	2000
PLS-HJHNQ202000	128	M18×1	20	10	11000	2000
PLS-HJHNQ30500	77	M10×1.5	30	5	5500	500
PLS-HJHNQ28200	92.1	M10×1	28	20	3000	200
PLS-HJHNQ28100	91	M8×1	28	25	2200	100
PLS-HJHNQ28250	94	1/2-20 UNF	28	20	4000	250
PLS-HJHNQ202000	128	1/2-20 UNF	20	10	20000	2000
PLS-HJHNQ201500	124	1/2-20 UNF	20	10	16000	1500
PLS-HJHNQ38100	66	M8×1.25	38	40	1200	100
PLS-HJHNQ38200	65	M8×1	38	14	3300	200
