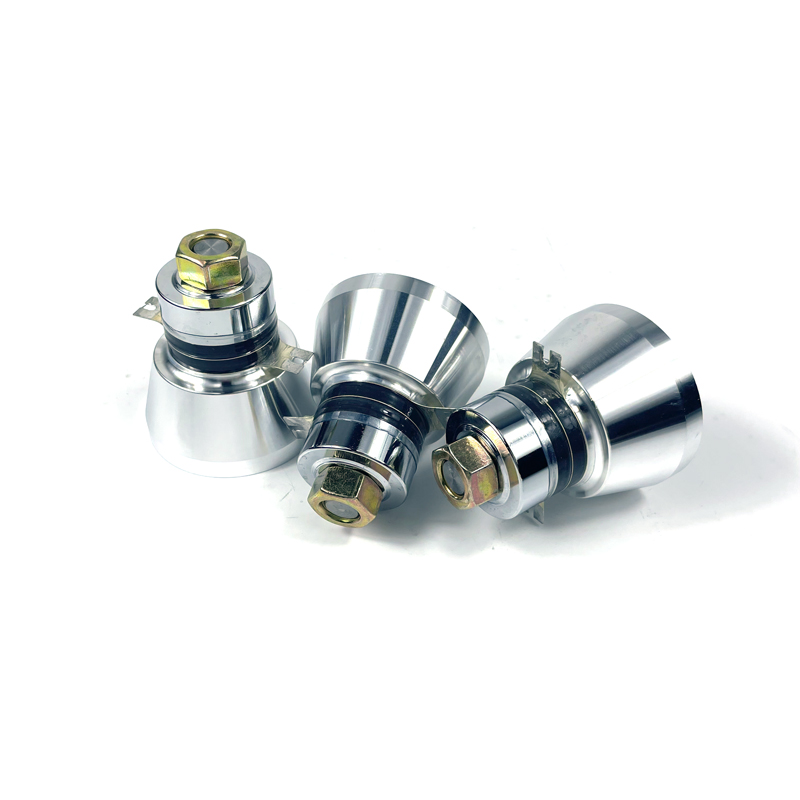

50W 20KHZ/28KHZ/40KHZ Low Power Multifrequency Ultrasonic Cleaning Transducer
Ultrasonic sound wave is a kind of acoustic chemical energy that can penetrate liquid and solid. Ultrasonic pollution is very small and has strong penetrability, so people thought of using it to clean tableware, so ultrasonic dishwasher came into being. As one of the three components of the ultrasonic dishwasher, the…
50W 20KHZ/28KHZ/40KHZ Low Power Multifrequency Ultrasonic Cleaning Transducer
Ultrasonic sound wave is a kind of acoustic chemical energy that can penetrate liquid and solid. Ultrasonic pollution is very small and has strong penetrability, so people thought of using it to clean tableware, so ultrasonic dishwasher came into being. As one of the three components of the ultrasonic dishwasher, the vibrator of the Ultrasonic Transducer is a very important part for transmission emission cleaning.
Type | Full length(mm) | weight(g) | FR (khz) | impedance(Ω) | CP(Pf)±10% | power(w) |
PT-UT38/80 KHZ P 4 | 61 | 330 | 38/80 | <35 | 4800 | 50 |
PT-UT40/100KHZ P 4 | 54 | 280 | 41/100 | <50 | 5200 | 40 |
PT-UT50K P4 | 42 | 135 | 50 | <35 | 3200 | 25 |
PT-UT28/83/130 KHZ P 4 | 70 | 480 | 28/83/130 | <30 | 5000 | 30 |
PT-UT25/45/80KHZ P4 | 78 | 540 | 25/45/80 | <30 | 5000 | 30 |
PT-UT33/89/135KHZ P4 | 60 | 430 | 33/89/135 | <30 | 5000 | 40 |
PT-UT28/41/123KHZ P4 | 68 | 630 | 28/41/123 | <35 | 6800 | 60 |
PT-UT40/80/120K | 56 | 260 | 120 | <35 | 5400 | 30 |
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K | 81 | 465 | 28/50/60/70/84 | <35 | 5000 | 30 |
PT-UT40/77/100/170KHZ P4 | 55 | 270 | 40/77/100/170 | <30 | 4000 | 30 |
50W 20KHZ/28KHZ/40KHZ Low Power Multifrequency Ultrasonic Cleaning Transducer
