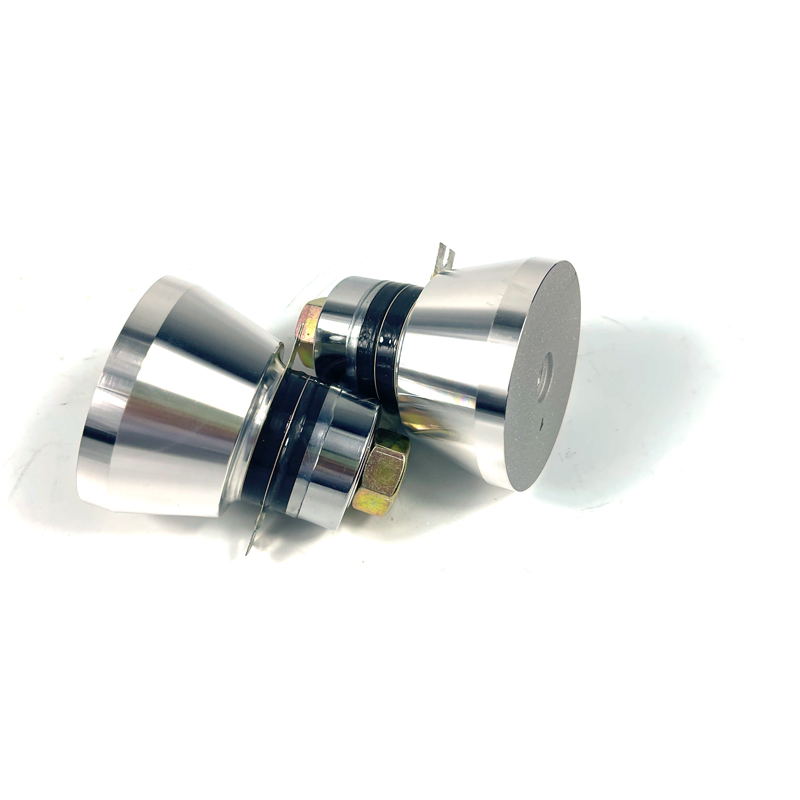

50W 40KHZ/80KHZ/100KHZ Ultrasonic Cavitation Multifrequency Ultrasonic Cleaning Transducer

At present, piezoelectric ultrasonic cleaning transducer is mainly used in the ultrasonic market in China, because this kind of industrial ultrasonic cleaning transducer has high electroacoustic conversion efficiency, cheap raw materials, and is easy to manufacture different structures to meet different cleaning requ…

Send Inquiry

Chat Now

50W 40KHZ/80KHZ/100KHZ Ultrasonic Cavitation Multifrequency Ultrasonic Cleaning Transducer

Industrial ultrasonic cleaning transducer vibrator is a device used for energy conversion, which converts one form of energy into another. In the field of acoustic research, transducer mainly refers to electroacoustic transducer, which can realize the conversion between electrical energy and acoustic energy.

The vibrators of industrial ultrasonic cleaning transducers are used in: cleaning machines, welding machines, polishing machines, punching machines, metal welding machines, detectors, B-ultrasonic diagnostic devices, Doppler instruments, dental cleaning machines, ultrasonic focusing knives, ultrasonic beauty machines, etc.

Type	Full length(mm)	weight(g)	FR (khz)	impedance(Ω)	CP(Pf)±10%	power(w)
PT-UT38/80 KHZ P 4	61	330	38/80	<35	4800	50
PT-UT40/100KHZ P 4	54	280	41/100	<50	5200	40
PT-UT50K P4	42	135	50	<35	3200	25
PT-UT28/83/130 KHZ P 4	70	480	28/83/130	<30	5000	30
PT-UT25/45/80KHZ P4	78	540	25/45/80	<30	5000	30
PT-UT33/89/135KHZ P4	60	430	33/89/135	<30	5000	40
PT-UT28/41/123KHZ P4	68	630	28/41/123	<35	6800	60
PT-UT40/80/120K	56	260	120	<35	5400	30
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K	81	465	28/50/60/70/84	<35	5000	30
PT-UT40/77/100/170KHZ P4	55	270	40/77/100/170	<30	4000	30
