China Multifrequency Ultrasonic Cleaning Transducer Manufacturer and Supplier
Piezoelectric ultrasonic vibrator transducer can be divided into yellow film ultrasonic cleaning transducer and black film ultrasonic cleaning transducer, while the black film Ultrasonic Cleaning Transducer has a strong cleaning force, which is commonly used by cleaning manufacturers; The stability comparison number of the ultrasonic cleaning transducer for yellow film cleaning can only be used for special purposes. It is commonly used for 17 khz or 20 khz.

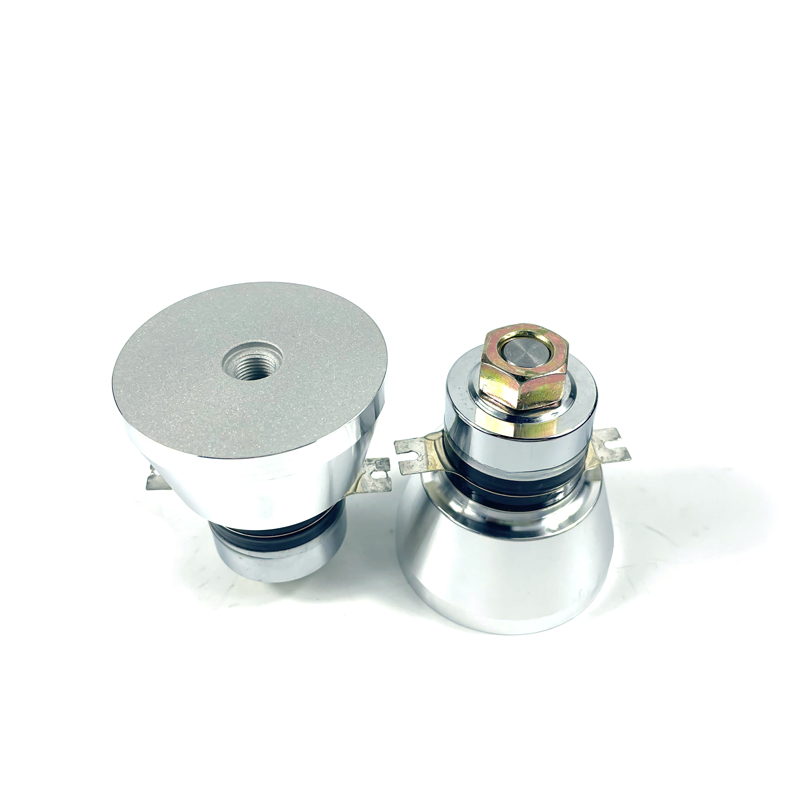

Piezoelectric ultrasonic vibrator transducer adopts sandwich design, with two piezoelectric ceramic plates and two electrode plates. Above is the radiation surface of aluminum material under the screw cover. Due to its simple structure and low cost, it is now common in China. The piezoelectric ultrasonic vibrator transducer is firmly fixed under the stainless steel with AB glue and screws.
The power of piezoelectric ultrasonic vibrator transducer is divided into 50W, 60W, 100W, 120W
The frequency of piezoelectric ultrasonic vibrator transducer is divided into 20khz-200khz
Type | Full length(mm) | weight(g) | FR (khz) | impedance(Ω) | CP(Pf)±10% | power(w) |
PT-UT38/80 KHZ P 4 | 61 | 330 | 38/80 | <35 | 4800 | 50 |
PT-UT40/100KHZ P 4 | 54 | 280 | 41/100 | <50 | 5200 | 40 |
PT-UT50K P4 | 42 | 135 | 50 | <35 | 3200 | 25 |
PT-UT28/83/130 KHZ P 4 | 70 | 480 | 28/83/130 | <30 | 5000 | 30 |
PT-UT25/45/80KHZ P4 | 78 | 540 | 25/45/80 | <30 | 5000 | 30 |
PT-UT33/89/135KHZ P4 | 60 | 430 | 33/89/135 | <30 | 5000 | 40 |
PT-UT28/41/123KHZ P4 | 68 | 630 | 28/41/123 | <35 | 6800 | 60 |
PT-UT40/80/120K | 56 | 260 | 120 | <35 | 5400 | 30 |
PT-UT28/60/70/84KHZP4(quadruple frequency)60W70K | 81 | 465 | 28/50/60/70/84 | <35 | 5000 | 30 |
PT-UT40/77/100/170KHZ P4 | 55 | 270 | 40/77/100/170 | <30 | 4000 | 30 |
