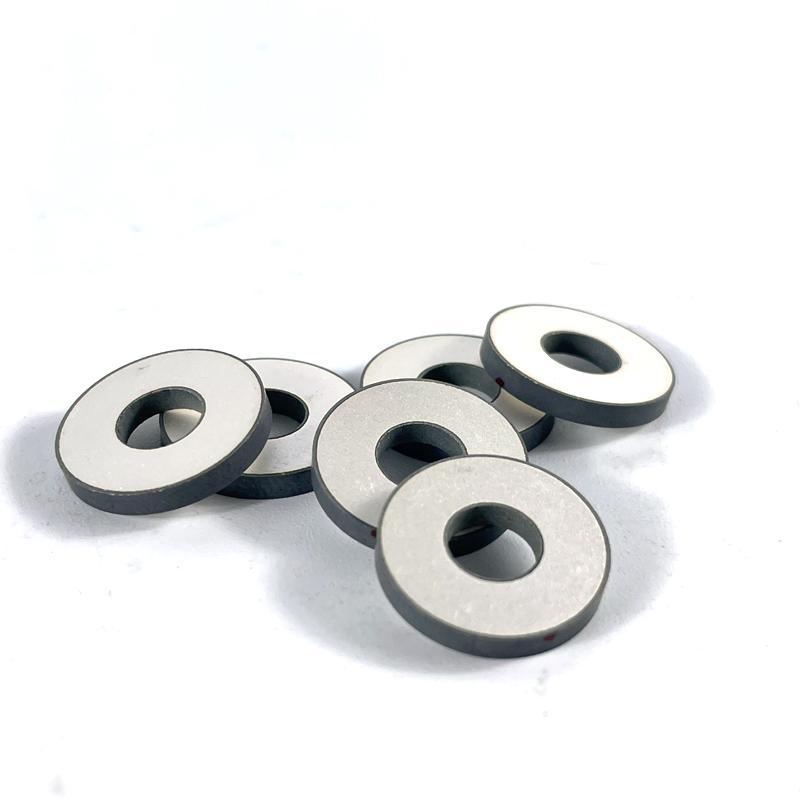

Piezo Vibration Piezoelectric Ceramic Transducer Ultrasonic Piezo Ring 40205mm

Piezo Vibration Piezoelectric Ceramic Transducer Ultrasonic Piezo Ring 40*20*5mm

Ultrasonic treatment of wastewater and toxic water generated by piezoelectric ceramic transducers. Ultrasonic motors with small radial dimensions, high output torque, and strong controllability; Ultrasonic sensors such as anti-theft, height measurement, car collision prevention, remote control switches, and robot distance measurement; Special attention should be paid to servo displacement brakes, optical strain gauges, strain gratings, ultra precision guiding mechanisms, cutting and grinding error compensation brakes, hydraulic servo valves, etc. In terms of high-temperature and high-performance piezoelectric ceramic materials, with the development of steel, chemical industry, energy, and aerospace, high-precision actuators, detection transducers, and sensors are required to work in high-temperature and harsh environments. The vibration control of aircraft engines, non-destructive testing of liquid metal pipelines, high-temperature flow detection and control in the steel and chemical industries, heating networks, power grids, and nuclear power industries, non-destructive testing of welded pipelines, and high-precision sensing driver components have all put forward urgent requirements for the high-temperature application of piezoelectric materials.

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (pf)	Dielectric dissipation factor tanδ(%)	Electromechanical coupling coefficient (Kr)	Impedance Zr(Ω)	Thickness frequency (KHz)
PU-PC25103	Φ25×Φ10×3	66.4	1240±12.5%	≤0.3	≥0.46	≤15	683±5%
PU-PC225104	Φ25×Φ10×4	66.4	930±12.5%	≤0.3	≥0.46	≤15	512±5%
PU-PC40155	Φ40×Φ12×5	45.9	2070±12.5%	≤0.3	≥0.46	≤15	410±5%
PU-PC40155	Φ40×Φ15×5	42.2	1960±12.5%	≤0.3	≥0.46	≤15	323±5%
PU-PC40176	Φ40×Φ17×6	40.5	1555±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC40205	Φ40×Φ20×5	37.9	1700±12.5%	≤0.3	≥0.47	≤15	410±5%
PU-PC50206	Φ50×Φ20×6	33.2	2490±12.5%	≤0.3	≥0.46	≤15	341±5%
PU-PC501765	Φ50×Φ17×6.5	34.8	2430±12.5%	≤0.3	≥0.46	≤15	315±5%
PU-PC50236	Φ50×Φ23×6	31.2	2340±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC50276	Φ50×Φ27×6	29.3	2100±12.5%	≤0.3	≥0.47	≤15	341±5%
PU-PC603010	Φ60×Φ30×10	25.3	1922±12.5%	≤0.3	≥0.47	≤18	205±5%

Piezo Vibration Piezoelectric Ceramic Transducer Ultrasonic Piezo Ring 40*20*5mm
